Auto High Speed HDPE LDPE LLDPE PE Single Layer Two Three Layer Multilayer Layer Rotary ABA Plastic Film Blowing Extruder Film Extrusion Blown Machine Price

Product Description

We are a professional plastic machine manufacturer , we have all kinds of film blowing machines , such as single layer , double layer, ABA three layer PE film blowing machine, IBC system ABC film blowing machine, PE two color film blowing machine, PE double head film blowing machine, PVC heat shink film blowing machine , PVC label film blowing machine, PVC packing film blowing machine, PP film blowing machine, and ect...
If you want to know more, please contact me...
Auto High Speed HDPE LDPE LLDPE PE Single Layer Two Three Layer Multilayer layer Rotary ABA Plastic Film Blowing Extruder Film Extrusion Blown Machine Price
Usage:
It is used to blowing low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) and other plastic films. It is widely used in liquid packaging, printing compound, clothing textile packaging, industrial packaging, etc.
Parameters:

Model	SJ-50	SJ-55	SJ-60	SJ-65	SJ-80	SJ-100
Max.Folding Width of film	600mm	800mm	1000mm	1100mm	1500mm	2000mm
Main Output	25 -35kg	35 -50kg	55 -65kg	55 -70kg	70 -80kg	110 -140kg
Main motor power	7.5-11kw	11-15kw	15-18.5kw	18.5-22kw	30-37kw	37-45kw
Screw Diameter	50mm	55mm	60mm	65mm	80mm	100mm
L/D ratio	28:1	28:1	28:1	28:1	28:1	28:1
Speed of screw	10-100r/min	10-100r/min	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Film thickness	0.01 -0.10mm	0.01 -0.10mm	0.01 -0.10mm	0.01 -0.10mm	0.01 -0.10mm	0.01 -0.10mm
Specification of die head	60 -120mm	100 -170mm	100 -170mm	120 -220mm	150 -300mm	500mm
Weight of machine	2000kg	2300kg	2500kg	3800kg	4600kg	6000kg
Overall Dimensions[L*W*H]	4.5*1.8* 3.5m	5.5*2.0* 3.8m	6.0*2.2* 4.2m	6.0*2.4* 4.3m	7.0*2.7* 5.8m	8.0*3.2* 7.6m
Specification of rotation	Continuous rotation	Continuous rotation	Continuous rotation	Continuous rotation	Continuous rotation	Continuous rotation

Model	2SJ-45	2SJ-55	2SJ-60
Screw dia (mm)	45X2	55X2	60X2
Speed (r/min)	12-120	12-120	12-120
Screw LD	28:1	28:1	28:1
each screw outout (kg/h)	35	50	60
Main motor power (kw)	2X11	2X15	2X18.5
Die head size (mm)	140-200	200-280	300-350
Head rotating freely	Continuously
Film thickness (mm)	0.02-0.10	0.02-0.10	0.02-0.10
Max width (mm)	800	1000	1500
Power (kw)	45	53	65
Weight (kg)	3500	4500	5200
Machine size (mm)	4200*2200*4200	4600*2400*5000	5200*2700*6000

Model	SJ3-1000	SJ3-1200	SJ3-1500
Screw diameter(mm)	45*3	50*3	55*3
Screw ratio(L/D)	28:1	28:1	28:1
Screw speed	15-150r/min	15-150r/min	15-150r/min
Main motor power(kw)	11*3	15*3	18.5*3
Output (single)	105kg/h	135kg/h	165kg/h
Die head diameter(mm)	150&220	200&250	250&350
Thickness of film(mm)	0.02-0.3	0.02-0.3	0.02-0.3
Max,folding width of film	1000mm	1200mm	1500mm
Total power	64kw	76kw	88kw
Weight	4T	6T	8T
Overall dimension(m)	6.6*4.1*5	6.6*4.1*5	6.8*4.3*6

CHARACTERISTICS:
1,Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package
2,The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3,The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4,Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll changing
Optional options:
1: Rotary die head
2: double winder
3: Corona machine(if need printing)
4: auto suction
5: Meter and weight control
Parts List:
Heating ring: 4Pcs
Temperature Controller: 4pcs
Voltmeter: 4pcs
Thermocouple: 4pcs
Filter: 4 meter
Tools: 1set
Operation Manual: 1pcs
More Machine photos:
Single layer film blowing machine:
Double layer /ABA co-extrusion film blowing machine:

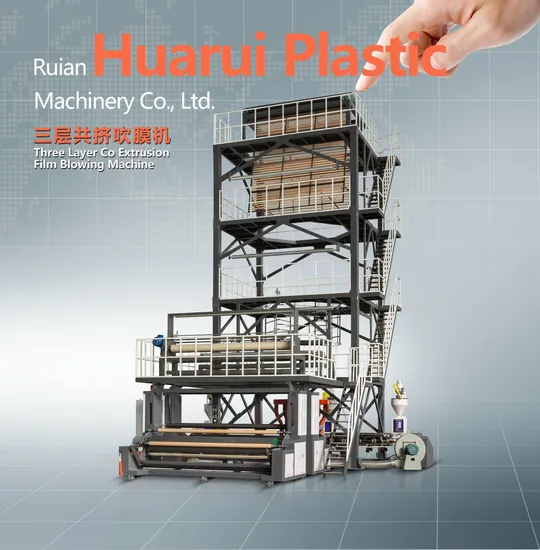

Three layer ABC co-extrusion film blowing machine:
Five layer co-extrusion film blowing machine:
Our Screw and barrel:
Our Die head:
Our workshop:
Our Certification:
Exhibition:
Machine packing and delivery

---
