C6136D Specification of Mini Lathe Machine Price Metal Lathe Machine Tools in China

Product Description

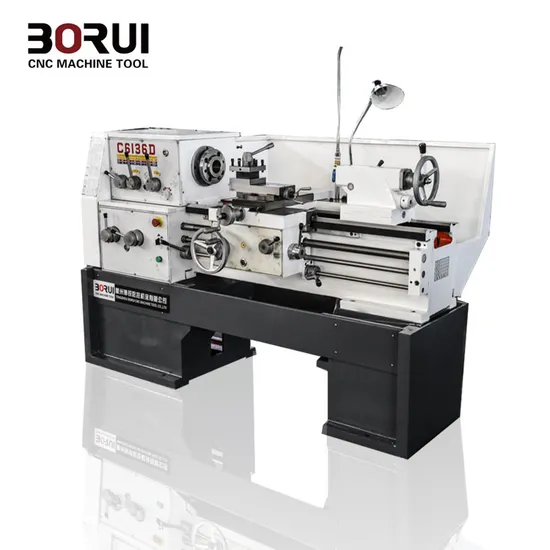

C6136D Specification Of Mini Lathe Machine Price Metal Lathe Machine Tools In China
Product Application
This series lathe machine is suitable for internal and external turning, tapering, and other rotating faces, metric, module and inch threads, as well as drilling and pull oil slot.
Width of bed is wider than normal lathe machine, with high hardness on guidewaym, the guideway is through high-frequency quenching, wear-resisting.
This machine is easy to operate, with rapid device for carriage, design with single hand wheel to operate.
The strength and rigidity of machine is higher than normal lathe machine, high efficiency, suit for heavy duty machining.
The main specification :

SPECIFICATIONS UNIVERSAL LATHE C6136D/C6140D
SPECIFICATION		C6136D	C6140D
Max .Swing over bed		360mm	400mm
Max .Swing over carriage		200mm	210mm
Max .length of work piece		750/1000mm
Width of bed		312mm
Section of turning tool		20x20mm
Spindle	Spindle speed	30-1600rpm(12steps)
	Hole through spindle	52mm
	Spindle taper	MT6
Feed	No. of feed	Cross: 0.039-1.05mm; Horizontal: 0.019-0.52mm
	Range of metric threads	0.5-20mm (25kinds)
	Range of inch threads	(80-1.75tpi) (35kinds)
	Range of module threads	0.25-10 (module 30kinds)
	Range of diametral pitc threads	160-3.5DP (30 kinds)
Tailstock	Max. tailstock spindle travel	100mm
	Tailstock spindle diameter	60mm
	Taper of tailstock spindle center hole	(MT4)
Main motor		3/4KW
Packing size	for 750mm	2000x1130x1540mm
	for 1000mm	2300x1130x1540mm
G.W. / N.W. (kg)	for 750mm	1500/1700kg	1600/1800kg
	for 1000mm	1700/1900kg	1800/2000kg

Standard Accessories: 1. Centers;
2. Steady rest (750mm without this);
3. Follow rest (750mm without this);
4. Foot plate;
5. 3-jaw chuck;
6. Leading screw guard; (3000mm without this)
7. Toolpost protection;
8. Chuck protection;
9. Cooling system;
10. Work Lamp.
11. Back guard
Optional Accessories: 1. Quick change toolpost
2. 2-axis Digital readout
3. 4-jaw chuck
4. Tamping attachment
Product Dtails
Packing Shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
