Factory Price Cat7 S/FTP Cable Network (LAN) Cable Copper Material 600MHz

Product Description

1.Product Description
2024 Hot Sale Cat7 SFTP Cable Network(LAN) Cable Copper Material
Risun is a manufacturer and exporter of high quality Lan cable/Network cable,coaxial cable, alarm cable and telephone cable in China.
Application: Cable for data transmission in structured cabling network(LAN), horizontal and scondary facilities
Quick Details:

Conductor:	Bare copper 24AWG(Solid, Stranded)	DC resistance(20ºC)	MAX. 75Ω/km(solid) MAX. 145Ω/km(Stranded)
Insulation:	skin foam, polyolefin, 1.43 mm OD	Resistance unbalance	MAX. 5%
Ripcord	Yes	Cap. between cond. pair	160 pF/100m
Shield	Polyester Tape/Aluminum Foil	Drain	Tinned copper
Sheath	PVC, PE, LSZH	Characteristic impedance(1-100MHz)	100±15Ω
Jelly	Optional	Velocity of propagation	78%(Solid) 70%(Stranded)
Messenger	Optional	Reference standards	ISO/IEC11801, TIA-568-C.2
Braid	TC, CU, AL braid(Coverage>40%)	Cable lay up	4 pairs

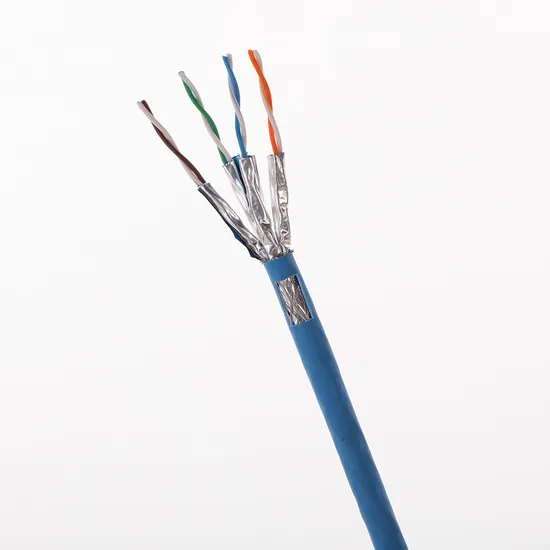

2.Detialed Photos


3.Our Advantages
1.18 years of experience in cable field makes us very familiar with export handling.
2. strict cable quality control system
3.we have Cost-effective solutions without compromising quality, ensuring excellent value for money.
4.we have already got ETL, CE, RoHS, ISO9001 certification.
5.we have efficient production and systems allow for timely delivery to global markets.
6.we have team for after-sales service to ensure customer satisfaction.
4.Configuration:1. Conductor: 0.58±0.02mm(Solid 23AWG) Bare copper
2. Insulation: skin foam, polyolefin, 1.43 mm OD3. Cores/Pairs: 8/44. Shield: Al/Pet Foil5. Braid: 48*0.12TC/CCA5. Drain: 0.4mm TC4. Sheath: 6.8±0.3mm PVC (PE, LSZH)5.Options: Jelly Compound, Jacket: UV, FR, RoHS complied.
6.Pair color identification: 1st White-Blue + Blue 2nd White-Orange + Orange 3rd White-Green + Green 4th White-Red + Red
5.Packing:



6.Production line:

7.Our Exihibition:

8.FAQ:
Q:How do you ensure cables quality?
A:Each cable undergoes physical testing in accordance with ISO/IEC 11801 and TIA-568-C.2 standards. Our team monitors every stage of production, with QC inspecting each step to ensure quality.
Q:Are you a manufacturer or trading company?
A:We are a factory.
Q:What is your delivery time?
A:Typically 5-10 days if in stock; 20-30 days for custom orders, depending on quantity.
Q:Do you have an MOQ?
A:Yes, normally 10 km per item.
Q:Do you provide samples? Are they free?
A:Yes, samples are free, but freight charges apply.
Q:How do I place an order for cables?
A:Share your requirements or application.→We provide a quote.→Confirm the sample and place a deposit.→We start production.
Q:Can I print my logo on the cables?
A:Yes, inform us before production.
Q:What are your payment terms?
A:Orders ≤ 60 km: 100% upfront.
Orders ≥ 60 km: 30% deposit, balance before shipment.
Please contact us for more information and our quotation!

---
