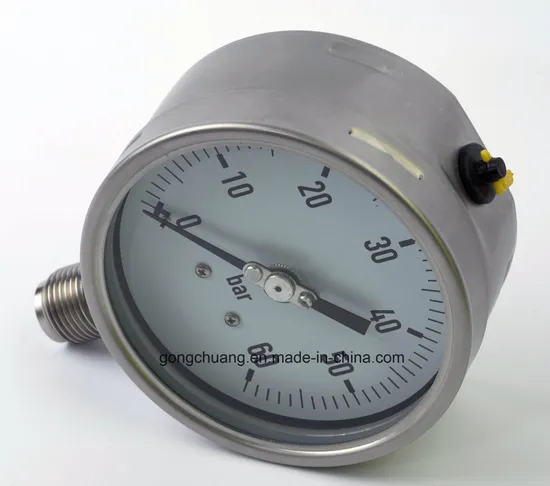

2.5inch Stainless Steel Pressure Gauge Manometer Factory

Product Description

Yuyao Gongchuang Instrument Co.,LTD
Contact: Mrs Tina Lu
v
Shipping And Payment Terms:
Delivery Time: 25-35 Days Based On Finally Order Quantities
Payment Terms: T/T
Application:
For corrosive or non corosive gas and liquid aggressive Media which are not highly viscous and would crystallize.
Particularly used in chemical, petrochemical and food Industry, biochemistry and any rush industries. For Measuring points subject to vibrations and high dynamic Pressure load.
*Specification:
1. Case & ring: Stainless steel 304
2. Window: Acrylic(dial size: 1-1/2"~3") Safety glass(dial size: 4"~6")
3. Element & Movement: Stainless steel
4. Bourdon tube system: Stainless steel 316
5. Socket: Stainless steel
6. Pointer: Aluminum alloy, black painted
7. Connection: 1/8", 1/4", 3/8", 1/2", 3/4"(BSP(PF)/BSPT(PT)/NPT)
8. Connection type:
A type(button connection),
B type(button connection with back flange for wall
Mounting)
AD type(back connection without flange)
BD type(back connection with front flange)
UD type(back connection with clamp(w/o flange) for panel
Mounting)
9. Dial size: 1.5", 2", 2.5", 3", 4", 6"
10. Ambient Temperature: -20~60C
11. Measured medium temperature: Tmax. +100C
12. Accuracy: (+/-)1.6% full scale(dial size: 1.5"~2.5")
(+/-)1.0% full scale(dial size: 3"~6")
13. Pressure range: Depand on your order
14. Type: Standard pressure gauge; Vacuum pressure gauge &Compound pressure gauge
Options:
>>Safety glass window for dial size: 2.5"&3"
>>Blow-out disk by back for dial size: 4"
>>Adjustable pointer available for dial size: 4"&6"
>>Special male or female thread connections
>>Measured medium Tmax. +100C
>>Glycerine or Silicone filling
>>Cleanness for oxygen service
>>Red pointer indicating max. Pressure on dial

Nominal Size :	2.5"(63mm),4.0"(100mm),6.0"(150mm)
Pressure Range :	0-100psi
Accuracy :	±1.6%, ±2.5%
WorkingTemperature:	-20°c~40°c
Case:	stainless steel
Bezel :	stainless steel
Bourdon tube :	Stainless steel ≤ 60 bar: C-type > 60 bar: Helical type
Connection:	Bottom connection or back connection
Movement:	Stainless steel
Dial:	Aluminium
Pointer:	Aluminium ,black
Window:	Glass Or Plastic
Thread:	1/8",1/4", 3/8",1/2", PT,BSP,NPT etc.
Fill:	Glycerine(standard) Silicone(optional)
Gaskets/Filling cap:	Neoprene Or Silica gel

PRODUCT DETAILS:
CERTIFICATE
WORKSHOP
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
