GM3015 China Stone Tea Tray Carving Machine Center with Tool Magazine

Product Description

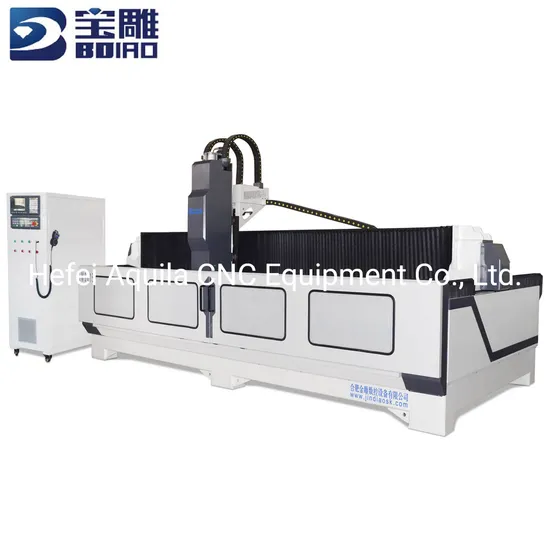

GM3015 China Stone Tea Tray Carving Machine Center with Tool Magazine
Keywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
Description:
GM3015 China Stone Tea Tray Carving Machine Center with Tool Magazine is BOIRO featured machine widely used in stone processing industry, tombstone processing industry, mold processing industry, all kings of art relief, decoration industry, ceramic processing, advertising industry and so on. BOIRO design it for many years, now popular in the market, it's economic machining center of stone cutting machine.
Functions:
The functions of this machine include three-dimensional relief and two-dimensional sculpture such as cutting, chamfering and drilling.
Applicable Materials:
Marble, jade, granite, tombstones, milestones, ceramic tiles, grass, bluestone, etc..
Application Scope:
Widely used in stone processing industry, tombstone processing industry, mold processing industry, all kinds of art relief, decoration industry, ceramic processing,advertising industry and so on.
Parameters:

Basic	X/Y/Z Axis Working Area	1500*3000*600mm
	Machine Size	4600*3000*2700mm
	Working Table	Aluminum T-slot table protected with PVC
	Machine Structure	Thick steel welded, with aging treatment
Main	Control System	Syntec/NC Studio NC65C
	Drive Motor	Japan Yaskawa driver motor
	Spindle Motor Power	1*7.5KW ATC Spindle Water Cooling
	Spindle speed	Adjustable Rotational Speed with 0-24000 rpm/min
	Inverter	Zoncn
Others	Drive System	X/Y axis helical rack & pinion, Z axis Taiwan ball screw
	Guide Rail	Taiwan imported linear guide rail PMI
	Cooling System	Circulating water-refluxing design/Round Spray
	Oil System	Automatic Oil system
	Way of Fixing Workpiece	Double-sided sealed vacuum adsorption system
	Suction cup	8pcs
	Water and dust resistant	Intelligent dust proof cooling system
	Hand wheel	Electric hand wheel
	Profile polishing wheel	Max diameter 150mm
	Tool magazine	20pcs ATC tool
	Vacuum Pump	1*7.5KW
	Positioning cylinder	6pcs
	Electric Appliance	Germany Schneider
	Reducer	Planetary reducer
	Working accuracy	±0.08mm
	Re-positioning accuracy	±0.05mm
	Max. Traveling Speed	25 m/min
	Max.Working Speed	15 m/min
	Water Sink/Tank	Powder-painting (Stainless steel is optional)
	Dictate Format	G-Code / HPGL
	Water consumption	46L/min
	Air pressure	0.8Mpa
	Weight	3000KGS
	Working Voltage	AC380V 3PH 50HZ

Accessories:
Performance Features:

1	Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability.
2	Famous brand big torque motor, low noise, large power, high efficiency.
3	Adopt imported square linear guide rail, high speed, high precision, long life.
4	Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength.
5	Reasonable dustproof and waterproof design, fully protect the machine transmission parts.
6	Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD Paint/ Ucancam, etc..

Samples:
