Product Description
Product Description

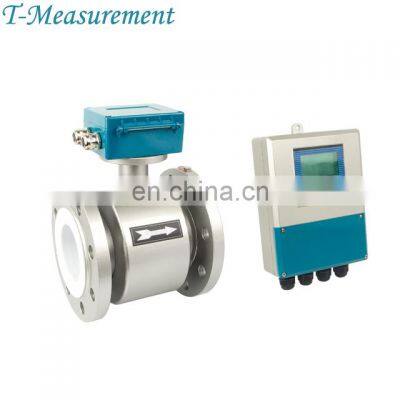

Product DescriptionInsertion Magnetic Flowmeter is designed for measurement of the velocity of liquid. It can be installed in any pipeline of internal diameter from 200mm(8in)to 3000mm(120in),through a small tapping. The complete lack of moving parts of this insertion flow sensor is the source of its reliability. There is no rotor to stop turning in dirty water and there are no bearings to wear out.SpecificationPlace of OriginChinaBrand NameTmeasurementModel NumberTEM82ETypemagneric flow meter CertificatesISO9001:2008;CEFlow directionpositive; negativeAccuracy±0.5%/0.2% of rateComsumed power<20WRelative humidity5%~95%Velocity0.3-10m/sAmbient temperature-20...+60℃DiameterPTFE:DN6-DN600High-temp rubber liner-20...+90℃ItemTEM82E MAGNETIC FLOW METERDetailReverse flow output are optional. A rapidly reversing magnetic field is produced in the lower housing. As the fluid moves through this field, a voltage is generated that is measured and translated into a frequency signal proportional to flow rate. This square wave signal proportional to flow rate. This square wave signal can be sent directly to PLC, control or converted to 4 to 20mAApplicationRelated ProductCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.About Us1. 18 Month's Warranty.2. MOQ:1 set.3.Ready to ship out within bysea,TNT,DHL,FedEX,as soon as we receive payment.4. We accept T/T,Western Union,PayPal & Secure Payment.DALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, ChinaWhatsapp/Wechat:+8618842866177E-mail：commercial(at)
>>
