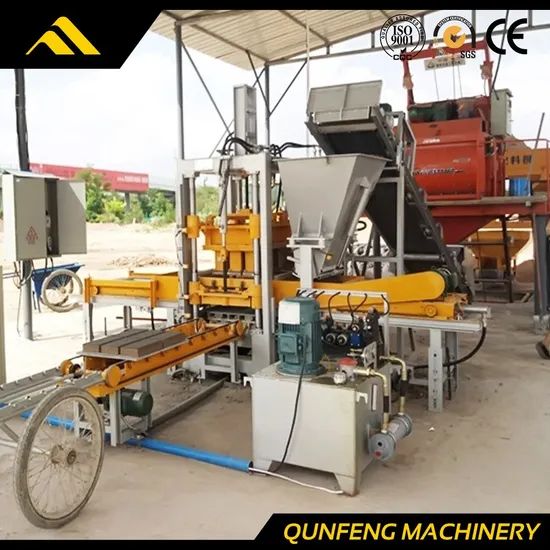

Construction Machinery Qunfeng CE, ISO, SGS Concrete Price Brick Making Machine

Product Description

Product Description
Features
It has the features of compact structure, easy operation, convenient maintenance, reliable economical and practical, suitable for those investors who are in small or medium scale.
1) Simplified hydraulic system, workers can handle the operation easily
2) Simple horizontal secondary material feeding, combine both pressing and vibrating, ensure the high compactness and performance
3) Twin electric motor forming, saves the time and money
4) Compact structure, easy operation, convenient maintenance, solid and reliable, suitable for customers start the investment.
Technical data
Size and output of major products:
A) Hollow blocks: 400 X 200 X 200mm, 2PCS/mould
B) Perforated bricks: 240 X 115 X 90mm, 8PCS/mould
C) Interlocking ripples: 10PCS/mould
D) Solid bricks: 240 X 115 X 53mm, 18PCS/mould

Dimension	2800×1160×2690mm
Rating pressure	16MPa
Vibration	Table vibration
Vibration frequency	3800-4200r/min.
Pallet size	680×535mm
Cycle time	15-20sec.
Power	17 kW

Customer Case


About us
Sales Team

Main Products

Application Case

CERTIFICATE

Packaging & Transportation

Global service system
As a model enterprise of China building material machinery, Qunfeng provides upscale and high-quality machinery with intelligent technology for their customers. Covering six continents with 9 overseas service stations and 24 domestic offices, Qunfeng has served 9000 clients from 112 countries and regions with more efficient intelligent manufacturing equipment. Qunfeng has earned great reputation in the world with its products being exported to high-level market worldwide, include Asia, Europe, South America, Oceania, Africa and North America.

---
