Product Description
Product Description

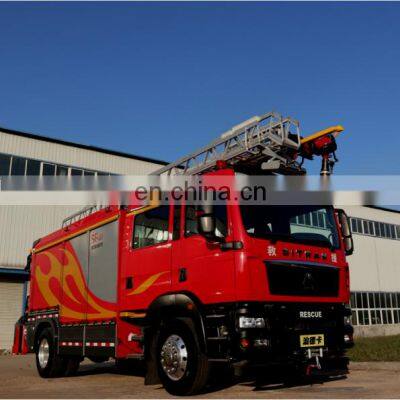

1,Chassisv Chassis:ZZ5206N501GE5 SITRAK2,Cabv Structure:Flat head, double rows with four doors, there are 4 seat frames for air breathing apparatus at the rear seat. v Seat:Two persons at the front (including driver),four persons at the rear.v Turnover device:Double cylinder hydraulic turnover mechanismv Equipment:In addition to the original equipment, it also equipped with 100W alarm, switch of alarm light, switch of PTO and etc.3,Tankv Volume:Water - 4000kgv Material:Low temperature resistant polymer PP v Structure:Welded, equipped with anti-swing board, and the grid structure with manhole is in accordance with the national standard.v Equipment: ² One entrance hole with quick lock and open device;² One overflow device;² One fluid level indicator;² One drain outlet, manual valve control;² Two water filling nozzles.4,Fire pump and piping systemFire pumpv Model:Darley, KSP1000v Flow:60L/sv Pressure:1.0Mpav Water diversion time:≤ 50sv Install type:CentralPiping system v Outer inlet pipe:Both sides of the fire pump are provided with an external water inlet, connected with the suction pipe which diameter is DN150. The connection type is clip pipe thread connection.v Inner inlet pipe:One DN150 inlet pipe, equipped with one DN150 pneumatic manual control butterfly valve, connected with the tank and the pump.v Outlet pipe:Both the left and right side of the fire pump has an atmospheric outlet with DN65 ball valve control;One fire monitor outlet pipe controlled by an DN100 pneumatic manual control butterfly valve, which can be lifted up to 85 degree and 15 meters high.v Water injection pipe:One DN65inner water injection pipe which can inject v Water from the outside through the pump.v Drain pipe:In order to protect the water pump and the PTO, the drain valve is added at the lowest area of them.v Cooling water pipe:It was equipped in order to let the PTO deal with various complicated situations.5,PTOv Model: Sandwiched full power PTOv Operation: Solenoid valve controlv Cooling mode: Compulsive adjustable water coolingv Lubrication mode:Splash lubricationv Type:Partial power v Control: Solenoid valve control;v Cooling mode: Oil coolingv Lubrication mode: Splash lubrication6,Fire monitor and large flow fire branchv Model:3482+5177v Brand: USA – AKRONv Flow:3000L/min 0.7Mpa Pressure flow regulation - automaticallyv Range:Water≥60mv Rotating angle:Horizontal 360°Large flow fire branch:No.Inlet pressure(bar)Flow(L/min)Range(m)Inlet dia(mm)13.5960306527.012004065v Material:Aluminum & Stainless steelv Weight:≤3.5kgv Origin:USA7,Structure of equipment boxv Material:Aluminum alloyv Structure:The box is sealed structure. German technology of lapping andbonding is using for connecting the internal equipment framewith the top plate and the baffle plate. The layers of the frameis designed according to the equipment’s size.v Ladder:Installed in the rear of the box, easy for climbing.v Rolling door:There are in total three aluminum alloy rolling doors with Lock on both sides of the equipment box.v Take & Put institution:According to the equipment requested by the fire Department, the design and layout can be adopted in the form of vertical drawing plate, vertical rotating cabinet, flat dragging plate, drawer,etc.8,Lift systemv The arm is welded by high-strength steel plate, with expandable water pipe and ladders on both sides and all of them can work at the same time.v Lift height:15mv Life angle:≥85°v Load of the ladder:225kg9,Lighting systemv Engine: Honda SH7600EXv Power: 5.6KWv Frequency: 50HZv Voltage: 24V inverter 220Vv Main light power: 2x180W(LED)10,Towing capstan systemv Dive model: Electronic controlv Max tension: 7480Kg v Wire rope dia: 11.5mmv Wire rope length: 32m Location: At the front of the vehicle, provided 4pcs of stoppers.11,Folding truck mounted crane systemv Manufacturer: HIABv Model: HIAB X-CL111B-2v Dive model: Hydraulicv Max lifting moment: 10.6t.mv Max lifting weight: 6000Kgv Max range: 8mv Rotation angle: 400°v Location: At the rear of the vehicle we accept that you pay the 30% for deposit to order the cars OR LC, please contact for more details. This man is Always at your disposal 24H*365D webchat: 21482303Whatsapp: +86 18604285556
>>
