Double Spindle Swiss-Type CNC Precision Automatic Lathe Tc385

Product Description

Double spindle Swiss-type CNC precision automatic lathe TC385
Product Features:
Each axis uses 30 type P-precision roller guide rail and 32 type double nut C3 screw.
Built in electric spindle,hydraulic clamping,ensure high precision machining.
Main spindle clamping is compatible with two clamping forms: forward push and backward pul, no need for large diameter grinding materials.
The primary processing length of the main spindle with guide bush is 320mm.
Main spindle side miling adopts ER25+ER20 with 23 high-power motors, combined with the spindle hydraulic brake, to improve miling eficiengyand rigidity.
Main spindle tool holder adopts rectangular-ambulatory-plane layout,reduce machine volume,enhance the rigidity of the tool holder structure, andachieve fast tool change speed.
Characteristic :

Model No.			TC385-1	TC385-2
Item No.			5 axis ,double spindle	5 axis ,double spindle
Specifications
NC system			SYNTEC 220TB	SYNTEC 220TB
Lathe rated power			25 kw	25 kw
Machining range
Maximum machining diameter			Ø38 mm	Ø38 mm
Maximum machining length (one-time clamping)With guide bush			320 mm	320 mm
Maximum machining length (one-timeclamping)Non guide bush			85 mm	85 mm
Main spindle power			10 kw	10 kw
Sub spindle power			10 kw	10 kw
Main spindle max through hole dia			Ø42 mm	Ø42 mm
Main/sub spindle rev speed			6000 rpm	6000 rpm
Sub spindle max clamping dia			Ø38 mm	Ø38 mm
Sub spindle max through hole dia			Ø42 mm	Ø42 mm
Max tool installed qty			25	25
Main spindle tool
OD Turning tool	Qty x Model		6x16 mm+3x20 mm	6x16 mm+3x20 mm
Side-Live tool	Qty x Model		3xER20+1xER25	3xER20+1xER25
	Drilling dia		Ø16 mm	Ø16 mm
	Tapping/Threading die dia		M8	M8
	Live tool rev speed		5000 rpm	5000 rpm
	Live tool power		2.3 kw	2.3 kw
End face fixed tool	Qty x Model		7xER20	7xER20
	Drilling dia		Ø13 mm	Ø13 mm
	Tapping/Threading die dia		M10	M10
Angular drilling head			-	-
Axial drilling and milling tool			-	-
Sub spingdle tool
End face fixed tool		Qty x Model	5 x ER25	3x ER25
		Drilling dia	Ø16 mm	Ø16 mm
		Tapping/Threading die dia	M10	M10
Axial drilling and milling tool			-	2 x ER16
Rapid feed speed			18(X1) 24(X2/Y1/Z1/Z2) m/min	18(X1) 24(X2/Y1/Z1/Z2) m/min
Feed motor power			1.7 kw	1.7 kw
The power capacity			25 kva	25 kva
Air pressure device			0.6 mpa	0.6 mpa
Weight			4800 kg	4800 kg
Dimensions(LxWxH)			3000x1450x2200 mm	3000x1450x2200 mm

Standard configuration	Optional configuration
Short workpiece collector	Angular drilling head
Workpiece belt conveyor	Long workpiece collector
Synchronal rotary guide bush device	High pressure pump
Main spindle cross 4 axis live tool	Oil mist collector
Cut off tool breakage detector	Chip conveyor
Non guide bush	Axial drilling and milling tool

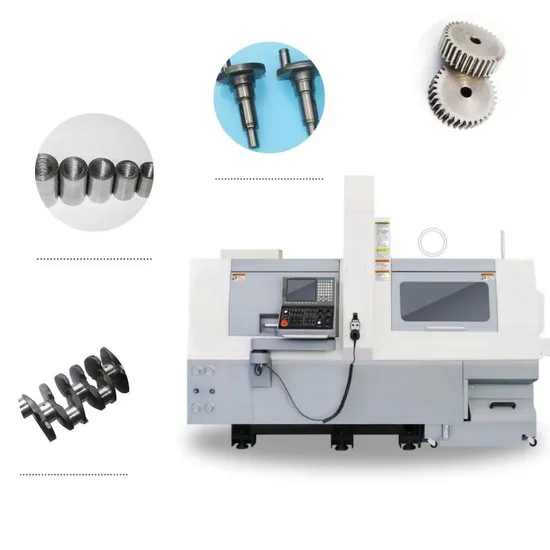

PRODUCT IMAGE:
FACTORY IMAGES:
FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
