Household Mini Earth Digger Machine Including Radiator Mini Excavator

Product Description

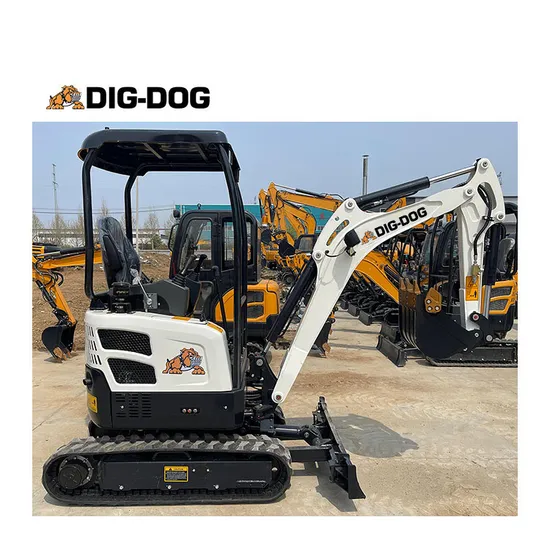

DG20 MINI EXCAVATOR
Application Range

DG20 mini Excavator with Tailless small wing structure and boom-side-shift option, which can be used for narrow-space operation tailless rotation, retractable chassis, deflective boom, first-class configuration, load pilot operating system, changeable rubber track, imported engine, environmental protection standard (Euro 5 and EPA 4) Can be equipped with a 4 FOPS canopy to provide a comfortable environment for work.
This product with beautiful appearance, high configuration,superior perfomance,low fuel consumption,wide operating range. It is suitable for loosing soil of vegetable greenhouse,campus greening of municipal departments. digging the hole for tree planting of.Fuit-land Nurseries. concrete pavement crushing,sand-gravel material mixing, construction work in the narrow place and so on.
Model and Specification

	SPECIFICATIONS
	Machine model No.	DG20
	Operating Weight	4409lbs/2000kg
	Bucket Capacity	0.07m3
	Types of Tracks	Rubber Track
	Engine	KUBOTA D1105
	Gradeabity	35
	Hydraulically retractable undercarriager	990mm-1300mm
	Swing Speed	0-9

	SVERALL DIMENSIONS
	A. Overall Length	3555mm
	B. Overall Width	990/1300mm
	C. Overall Height	2290mm
	D. Chassis Width	1300mm
	E. Minimum ground clearance	150mm
	F. Cabin Height	2290mm

	Working Range
	G. Max Digging Height	3700mm
	H. Max Dumping Height	2440mm
	I. Max Digging Depth	2400mm
	J. Max Vertical Digging Depth	2050mm
	K. Max Digging Radius	4040mm
	L. Min. Swing Radius	1610mm
	M. Tail Swing Radius	650mm

Details Images
Details Show

BRAND ENGINE	TRACK SCALE
Stable engine quality, high performance engine, ultra-low fuel consumption, strong power.Based on the near perfect matching technology between engine and hydraulic system, the power output is increased	The driving motor is powerful, reliable and stable. Working platform can be 360 ° Rotating, with strong rubber track

Delivery Process
FAQ
1.What are the advantages of your brand?
We manufacture our products locally. Our customer service is exceptional and personalized for every customer. Every DIG-DOG product is armed and durable with a 12-month warranty. We use high quality materials & parts sourced from the very best in China.Our design team works closely with
customers for any customized orders.
2.What logistics way for product delivery?
1). 90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc. 2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway. 3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.
3.Which payment terms do you accept?
We can work on T/T bank transfer and 100% irrevocable L/C. Please contact our customer representatives directly for a specific term.
Order Process
Our Seven Advantage

---
