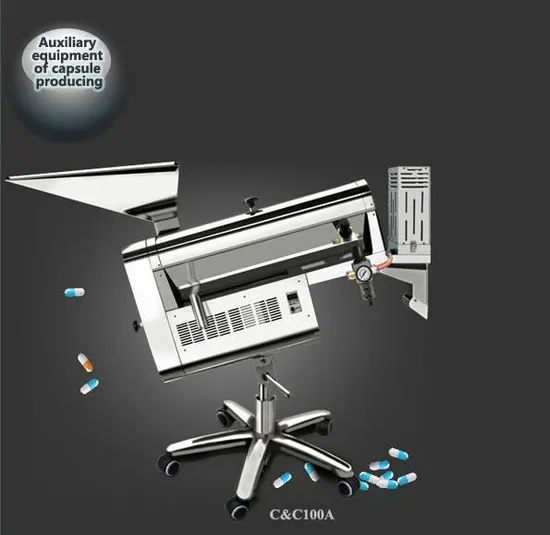

Capsule Polisher with Sorter Capsule Polishing Machine with Sorter

Product Description

Features:
C&C100 series capsule polishing and sorting machine is an advanced machine with new structure.To compare it with the traditional ones it has apparent advantage for its function and structure. The main characters are:
1.Small size, good looking , adjustable height and angles. It can be connected to any types of capsule filling machines. Timely polishing while producing is realized to raise the polishing quality and efficiency.
2.It can automatically sort out capsules with low weight, empty body, scrap and loose piece to meet GMP standard.
3.High quality stainless steel is used inside the medicine- polishing chamber. Quick connecting parts are also adopted to
dismount the equipment more easily and to clean more thoroughly.
4.Quick detachable brush and bearing are used for the ain axle. The brush and bearing can be dismounted easily. The hair of brush will not drop. Different sizes of brushes can be changed to meet the needs of different medicines.
5.A safety device is equipped. The speed of motor is controlled by converter. The polisher can continue to work for long time and stands moment of force.
Structure principle:
1.From the capsule filling machine the filled capsules are fed into A .
2. The turning brush brings capsules from B to C the cylinder.
3. Within the net cylinder brush D polishes and dedusts the capsules.The loose piece and fragments are retrieved by vacuum sucker E .
4. The brush conveys the capsules to the outlet of cylinder F .
5. In the sorter segment G clean compressed air collects low weight capsule; loose piece and fragment of capsules to H the collecter.
6. The pressure of the compressed air is shown on the filter decompressed valve meter I , which can be adjusted at different requirement.
7. The qualified capsules are ejected from outlet J.
Technical date:

Model	C&C100		C&C100A
Capsule Model No.	00# 0# 1# 2# 3# 4#
Max Output Capacity (pcs/h)	150000		300000
Power Supply	1PH 220V/110V 50Hz/60Hz 0.2kw
Compressed Air	0.25m3/min 0.3Mpa
Vacuum	2.7m3/min -0.01Mpa
Dimension(mm)	950 x 600 x (870-1000)	1150 x 600 x (870-1000)
Weight (kg)	35	40

Our Advantage
20+ Years Experience
Our products are sold all over Europe,North&South America, Sino-East, Asia and pacific area as well as Africa,we establish long term.
Quality service
Company cooperates with research institutes. We strictly control the process of raw materials up to finished product.

24 hour service
Quick and clear response to customers questions. Warm after sale service, we will help to solve the problems in your usage.
High quality
Dedicated to serving customers first, we provide reasonable prices, high quality products.
FAQ
1. What kinds of payment terms can you accept?
The most commonly used payment terms are T/T, L/C, Paypal, Western union, etc.
2. What's your delivery time?
Usually we will arrange the shipment within 15-45days after confirming the order.
4. How about the packing?
Standard packing , we also accept customized pack.
5. What is the Min Order Quantity?
Different products have different MOQ.
6. How about the validity of quotation?
In normal , the validity can keep a month, but when market changes fast, the validity will be short accordingly.
7. What documents you provide?
Usually, we provide Commerical Invoice, Packing List, Bill of loading, COA , and Origin of certificate. If your markets have any special requirements, let us know.
For more information,please don't hesitate to contact me.

---
