Made in China Outdoor Production/Mining/Gas Field 400kw Main Power Vman Generator

Product Description

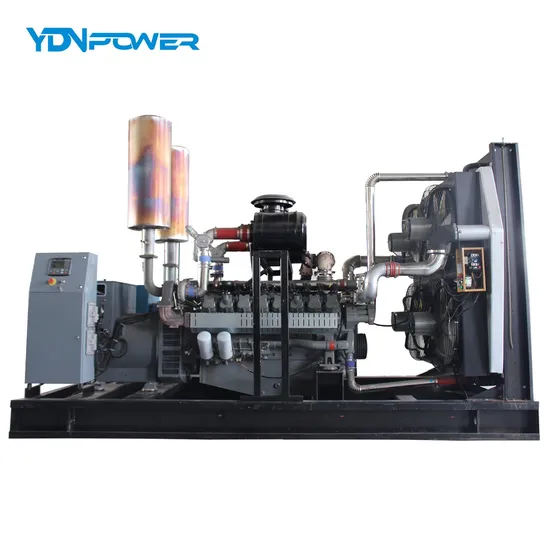

400kw VMAN Natural gas generator Set
Date: 25st October, 2019
Quotation number: YDN052019102501
Contact: Kevin
The following is the details of our 400kW VMAN natural gas generator, if you have any questions; please contact us any time, thank you! 1.400kW VMAN natural gas generator set parameters:

Model		YDNV-400
Rated power (kW/KVA)		400/500
Rated current (A)		720
Rated Voltage(V)		230/400
Rated Frequency(Hz)		50
Size (mm)		4550*2070*2050
Container type (mm)(Optional)		6050*2500*2650
Weight (kg)		6500
Engine	Model	DT30A
	Type	Water-cooled, 4-stroke,16 cylinder V-type
	Rated Power(kW)	480
	Rated Speed(rpm)	1500
	Cylinder No.	16
	Bore*Stroke(mm)	128*142
	Cooling Method	Water-cooled
	Oil Consumption(g/KWH)	<1
	Gas Consumption(m3/h)	120
	Starting method	24V DC
Alternator	Brand	Farrand
	Model	FLD400
	Rated Power(kW/KVA)	400/500
	Voltage Regulation	<=±1
	Excitation mode	Brushless, Self Excitation
	Insulation Class	H
Control System	Model	SMARTGEN HGM6110N
	Working Voltage	DC8.0V to DC35.0V
	Overall Dimensions	197 mm x 152 mm x 47mm
	Panel Cutout	186mm x 141mm
	Working Condition	Temperature: (-25~70)ºC; Humidity: (20~90)%
	Weight	0.56kg

2.Natural gas generator unit delivery status:

SN	Name	Qty	Brand	Remark
1	Natural gas engine	1 set	VMAN	Displacement 30 L,1500rmp
2	Alternator	1 set	Farrand	50Hz, 400/230V
3	Common Base	1 set	YDN POWER	Steel
4	GAS System	1 set	Motor tech	Germany origin, ignition and speed control
5	GAS train	1 set	YDN POWER	GAS pressure regulator,pressure gauge,back-fire arrester,ball valve
6	Battery	1 set	Camel
7	Cooling system	1 set	Datong	Water Cooling
8	Exhaust system	1 set	YDN POWER	Exhaust and muffler
9	Parts and tools	1 set	YDN POWER	Spark plug and wrench,air filter

3.Generator set requirements for natural gas: The methane content should not be lower than 95%. The Natural gas temperature should be between 0-60 ºC. No impurity should be in the gas. Water in the gas should be less than 20g/Nm3. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary. The gas should be dehydrated and desulfurized. Make sure that there is no liquid in the gas. H2S<200mg/Nm3. 4.Price and payment method: 30% deposit before production, 70% balance before shipment.

SN	Name	Qty(set)	Price(10,000 yuan)
1	400kw natural gas generator (50Hz,400/230V)	1
Total(10,000 yuan)

5.13% VAT is included 6.Delivery time: within 45 days after deposit received 7.Warranty period: 1 year from the date of delivery of the product or 1500 hours of normal operation of the unit, the first comes first 8.Packing: Stretch film and bubble film 9.Pictures for references 400KW VMAN natural gas generator (reference only Smartgen HGM6110N Generator Unit Controller
HGM6100N series automation controller integrates digital, intelligent and networked technology, which is used in the automation and monitoring system of a single generator set. It realizes the functions of automatic start/stop, data measurement, and alarm protection and "three remote" of the generator set.
Its main characteristics are as follows:
-- LCD display 132x64, with backlight, display in eight languages, touch button operation;
-- Silica gel panel and keys are used to adapt to high and low temperature environment.
-- It has RS485 communication interface and can realize the function of "three remote" by using MODBUS protocol.
-- It has CAN BUS interface.
-- Suitable for three-phase four-wire, three-phase three-wire, single-phase two-wire, two-phase three-wire (120V/240V) power supply 50Hz/60Hz system;
-- Acquisition and display three-phase voltage, current, frequency and power parameters of municipal electricity/power generation;
-- Municipal electricity has the functions of over-voltage, under-voltage and phase-absence, and power generation has the functions of over-voltage, under-voltage, over-frequency, under-frequency, over-current and over-power.
-- Control and protection functions: automatic start-up/shutdown, closing and closing (ATS switchover) and perfect fault display and protection functions;
-- It has the functions of power outage, idle speed control, preheating control and speed up and down control, and all of them are relay output.
-- various temperature, pressure and oil level sensors can be used directly, and the parameters can be customized.
-- Maintenance function, maintenance type can be selected as date or running time, maintenance action can be set (warning or alarm downtime);
-- It has the functions of history record, real-time clock, time switch (start once a month/week/day and set whether it is loaded or not).
6. Cases
400kW gas generator for waste food treatment plant with Steam boiler 250kW VMAN gas generator with Synchronization cabinet and pretreatment system 2*350kW gas CHP with synchronization system
3*350kW gas CHP with Sychronization 10.Optional configuration CHP (For hot water) 11.Case show In the China Petroleum project in Ordos, Gas Generators are equipped with natural gas compressors.
12.Company introduction and qualification certification
YDN POWER has been operating since 2000 and is now one of the most reputable companies in the field of gas power generation in China. We cover the entire value chain of gas generator set, including design, manufacturing, sales, installation, commissioning etc. Thanks to our professional team and modern facilities, we are able to provide reliable gas power solution in the range of 10-1200KW with CNG, BIOGAS, LPG and other types of gas sources, which is significantly meaningful to energy-saving and environmental protection.
Gas generator sets range from 10kW to 1200kW, and are divided into natural gas generator sets, biogas generator sets, liquefied petroleum gas generator sets, and biomass gas generator sets. Our company is the exclusive agent of LOVOL Gas Power China, the exclusive agent of VMAN natural gas and biogas engine, the exclusive agent of Chongqing Push and YANGDONG natural gas engine in China.
The company's products cover 28 provinces, municipalities and autonomous regions in China. The company has self-support import and export rights, and the products are exported to foreign countries, especially the Southeast Asia, Middle East and Central Asian countries along the Belt and Road. At present, the company has established long-term and stable cooperative relations with more than 20 countries including Asia, Africa and America.
The company has registered the "YIDANENG" trademark brand. The factory covers an area of 36,000 square meters, including the production department, technical department, and international trade department. The departments have clear responsibilities and division of labor, forming an excellent corporate style and corporate culture.
WEIFANG YIDANENG POWER CO., LTD. warmly welcomes you and looks forward to working with you to create the future!

---
