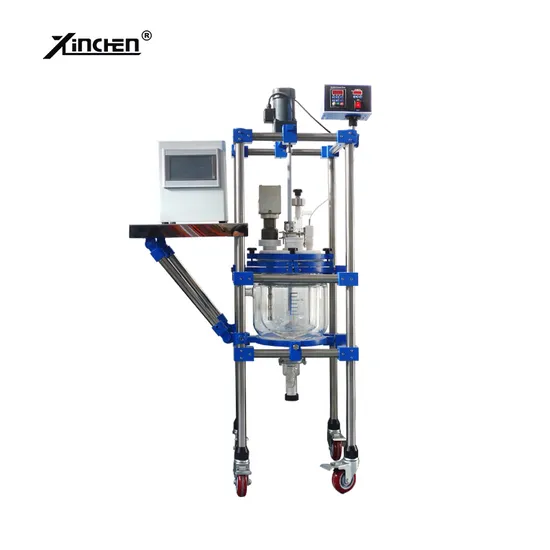

Reactor with Acid-Base Sensor

Product Description

The Glass Reactor can be designed to be single, double or triple wall glass reactor.The reaction menstruum can be put into the inner layer to do stirring, interlayer can be connected with cold and heat source ( frozen liquid, hot water or hot oil) to do circulating heating or cooling reaction.
Under seting the constant temperature, and in sealed glass reactor, stirring reaction can be carried out at atmospheric pressure or negative pressure conditions according to the operating,and also can carry out reflux and distillation of the reaction solution.
Bottom filter plate material is PTFE,can be used for separation and filtration.
We support customization on different kinds of nutsche filter reactor. Product Parameters

Model	XC-1L	XC-2L	XC-3L	XC-5L	XC-10L	XC-20L
Volume (L)	1	2	3	5	10	20
Jacket Volume (L)	0.3	0.6	0.9	1.5	3	6
Lid Diameter (mm)	150	150	150	180	265	265
External diameter of the inner vessel (mm)	113	135	150	180	230	290
External diameter of the outer vessel (mm)	150	180	200	230	290	330
Vessel height (mm)	250	280	300	400	450	550
Motor power (W)	90	90	90	120	120	140
Vacuum degree(Mpa)	0.096
Rotation Speed (rpm)	50-800	50-800	50-600	50-600	50-600	50-600
Torque (Ncm)	30	30	30	162	162	210
Dimensions(mm)	330*350*800	320*350*800	320*350*900	450*450*1100	500*500*1200	500*500*1450
Power	110V/220V/380V/410V/480V 50Hz/60Hz

Model	XC-30L	XC-50L	XC-80L	XC-100L	XC-150L	XC-200L
Volume (L)	30	50	80	100	150	200
Jacket Volume (L)	10	16	24	30	45	60
Lid Diameter (mm)	265	265	340	340	340	340
External diameter of the inner vessel (mm)	330	365	410	460	550	600
External diameter of the outer vessel (mm)	365	410	460	500	600	650
Vessel height (mm)	730	850	950	950	980	1200
Motor power (W)	140	180	250	250	400	750
Vacuum degree(Mpa)	0.096
Rotation Speed (rpm)	50-600
Torque (Ncm)	210	300	350	350	400	400
Dimensions(mm)	500*500*1600	600*600*1800	700*700*2400	700*700*2600	800*800*2800	1200*900*3200
Power	110V/220V/380V/410V/480V 50Hz/60Hz

Product Features
1.The whole stainless steel column, mobile framework, 4-6 or more opening ports of the reaction kettle lid, with full set of glass parts for reflux, adding liquid, temperature measurement, and so on. 2. Use G3.3 high borosilicate glass, with good chemial and physical properties. 3. Alloy steel mechanical seal, PTFE connector, to maintain a high precision seal in the working condition. 4. With PT100 sensor probe, high precision temperature measurement, small errors, high efficiency. 5. AC reducer motor, strong torsion, no noise. 6. PTFE discharge value, moveable interface, discharging completely and quickly. 7. Strong design ability, support customise on request. (such as PH meter, sand core filter etc) 8. Electrical explosion-proof model available. Project Photos
We professional manufacture different kinds of glass reactor systems over the past 10 years.
We have accumulated lots of experience to help customers to find a suitable solutions from lab scale to pilot and industrial scale.
1.Packing method: Standard export wooden box or base on your requests.
2. Shipping method: By Express door to door, or by ship, based on your choice.
1) If delivery goods by Express, door to door service , generally about 5-7 working days reach.
2) If by air, deliver goods to your destination airport, about 5 working days reach.
3) If by sea, deliver goods to your local seaport, specific days and cost is based on different shipping line.
3. Warranty
Any broken or damages of glass parts caused by delivery, will be afforded by Nanjing Ningkai company.

---
