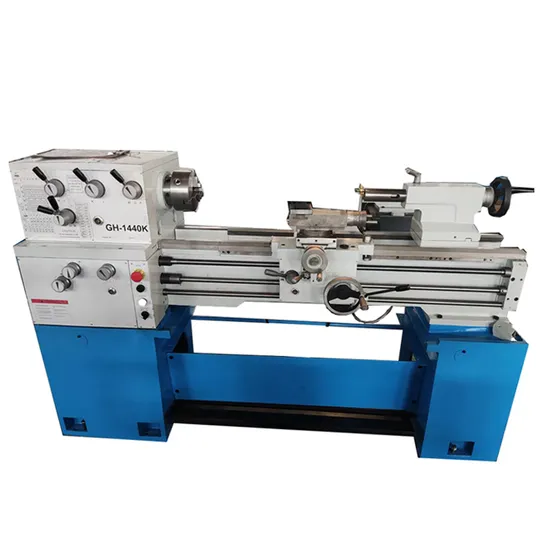

Horizontal Manual Gear Head Mini Gap Bed Metal Lathe Machine

US$447.00 1 unit (MOQ)

Basic Info.

Model NO.

GH1440K

Type

Horizontal Lathe

Processing Accessory

Centre CNC Lathe

Guide Rail

Horizontal Guide Rail

Tool Holder

Double-tool Holder CNC Lathe

Power Source

Electric

Controlling Mode

Artificial

Automatic Grade

Semiautomatic

Setting Mode

Floor-type

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Swing Over Bed

400mm

Swing Over Cross Slide

232mm

Max.Swing Over Gap

530mm

Width of Bed

260mm

Diameter of Spindle Hole

51mm

Distance Between Centers

1000mm

Spindle Nose

Spindle Taper

Mt5

Spindle Speed

40-1800rpm, 12steps

Quill Diameter

45mm

Quill Travel

110mm

Main Motor

2.2kw

Coolant Motor

40W

Name

Horizontal Metal Manual Lathe

Quill Taper

Mt3

Transport Package

Wood Case

Specification

CE, ISO9001

Trademark

UNI-TECH

Origin

China

HS Code

84581900

Production Capacity

100sets/Month

Product Description

Horizontal Manual Gear Head Mini Gap Bed Metal Lathe machine
1.Main features:
1) Hardened and ground bed ways.
2)12 speeds all geared head stock.
3)3HP(2.4kW)three phase motor.
4) Foot brake giving rapid braking.
5) Emergency stop button equipped on the front of headstock.
6) Jog button for easy gear engagement and inching spindle.
7) Extra safety switch shuts down machine automatically for changing belt or gear for threading cutting. 2.
2.Specifications:

Specification
ITEMS			GH-1440K/GH1640K
General capacity	Max. swing over bed	mm	Φ 356(14" )/400mm
	Max. swing over slide	mm	Φ 210(8-1/5" )/232mm
	Max. swing in gap	mm	Φ 508(20" )/530mm
	Width of bed	mm	260(10-1/5" )
	Max. Length of workpiece	mm	750(30" )/1000(40" )
Main spindle	Taper of spindle bore		M. T. No. 5
	Diameter of spindle hole	mm	Φ 40(1-1/2" )/51mm
	Number of spindle speeds		12
	Range of spindle speeds		40-1800
	Spindle nose		D1-4
Threading & Feeding	Metric pitch threads	mm	0.4-7(37kinds) 0.45-7.5(23kinds)
	Whit-worth threads	TPI	4-56(28kinds) 4-112(40kinds)
	Range of longitudinal feeds	mm	0.043-0.653(0.0012" -0.0294" rev)
	Range of cross feeds	mm	0.024-0.359(0.0004" -0.0103" rev)
Leadscrew	Diameter of leadscrew	mm	Φ 22(7/8" )
Leadscrew	Pitch threads of leadscrew	mm	4mm or 8T. P. I
Tailstock	Travel of tailstock quill	mm	120(4-3/4" )
	Diameter of tailstock quill	mm	Φ 45(1-25/32" )
	Taper hole of tailstock quill		M. T. No. 3
Power	Power of main motor		2.4Kw(3HP), 3Ph, 4P, 60Hz, 230V
Power	Coolant pump motor power	kW	0.04(0.055HP)
Overall dimensions (L× W× H)		mm	1900× 710× 1170
Packing size of lathe (L× W× H)		mm	1900× 760× 1435
Net weight		kg	1250(2750 lbs)
Gross weight		kg	1380(3040 lbs)

3.Standard accessories:
3JAW CHUCK, 4JAW CHUCK, FACE PLATE, STEADY REST, FOLLOWING REST, COOLANT, WORK LIGHT, WRENCHES.
4.Optional accessories:
DRO
QUICK CHANGE TOOLPOST
TAPER TURNING
5.Other informations:
Packing: wooden case.
Delivery time: 40~45 days after down payment.
Payment terms: 30% down payment as ordering; 70% T.T. after BL copy.
