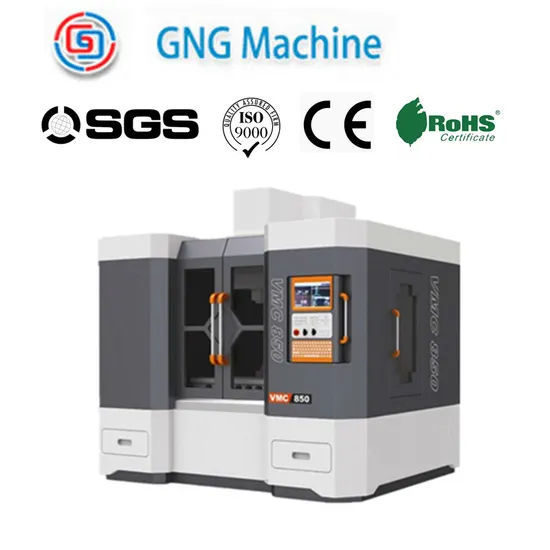

High Precision CNC Milling Machine Center Vmc850L

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: VMC330L
Type: Vertical
CNC or Not: CNC
Voltage: 380V
Power(W): 1100W
Weight: 5500kgs
Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: 260X225X240cm 5500kg
Delivery Detail: 30-45days
Specifications
CNC milling machine center
Vertical machine center
Taiwan spindle, Taiwan linear guideways
Controller: GSK-218M/Siemens-802C
CNC milling machine center model VMC850L
Vertical machine center
Taiwan spindle, Taiwan linear guideways
Controller: GSK-218M/Siemens-802C

NO.	ITEM VMC850L				Specification
1	Table size L(mm)× W(mm)				1000× 500
2	T slot QTY /width/				5-18
3	Maximum load(KG)				500
4	X travel (mm)				c
5	Y travel (mm)				500
6	Z travel (mm)				500
7	Spindle nose to table (mm)				110-610
8	Spindle center to column (mm)				560
9	Spindle taper				BT40
10	Max. spindle speed (Rpm)				8000
11	Main motor (kW)				11
12	Feed motor		X torque(N. M)		11
			Y torque(N. M)		15
			Ztorque(N. M)		15
			Max. install size		11
13	Rapid moving speed (m/min. )				12/12/10
14	Cutting speed (mm/min)				1-8000
15	Ball screw (diametermm/pitch )mm				40/10
17	Accuracy	Positioning accuracy (mm)			0.016
		Repeatability accuracy (mm)			0.008
18	Tool changer	Funnel type (optional ) BT40			12 or 16
19	Air pressure Mpa				0.6
20	Machine weight (kg)			Complete machine	5500
21	Machine overall size: L(mm)× W(mm)× H(mm)			Complete machine	2600x2250x2400

FAQ:
Question 1: what is your target market?
A1: we are now focusing on Europe and North America.
Question 2: what is the biggest advantage over competitors?
A2: we are one of the most powerful suppliers of vibration Multi Tool saw blades in China. We have our own brand, and we can also customize the brand according to the needs of customers.
Question 3: what about payment and delivery time?
A3: delivery time: within 30 days after receiving the advance payment.
Terms of payment: 50% t / T in advance, 50% against copy of B / L (or other)
Question 4: can I have some samples?
A4: Yes, we are honored to provide you with samples for quality inspection.
Q5: how is your factory doing in quality control?
A5: quality first. From the beginning to the end of production, we always attach great importance to quality control. Every product must be carefully inspected before packing and shipment.
Why choose us?
1. GNG has a strong sales team and rich export experience.
2. The brand of GNG has a long history and its products are rich but not monotonous.
3. The products from GNG have long service life, stable quality and stable beating.
4. High temperature Tools pay more attention to production details, and the packaging is firm and exquisite.
5. GNG supports non-standard customization.
6. GNG has its own strong R & D team and strong innovation ability.
7. Our sales response is accurate, timely, professional and long-term after-sales service.

---
