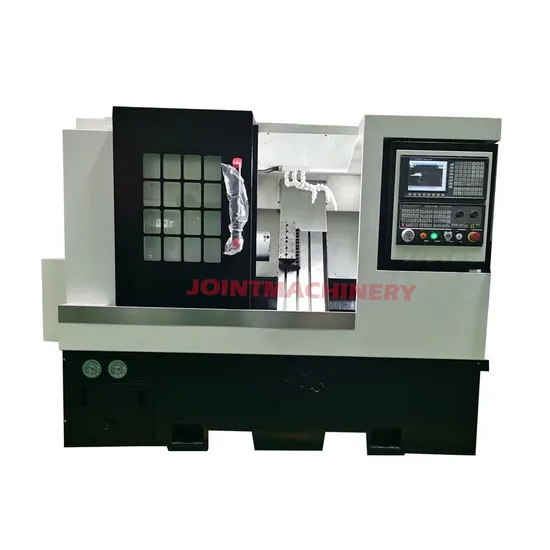

Gang Tool Slant Bed CNC Lathe Precision Bench Lathe Torno CNC Metal Machine Tool

Product Description

This series of high-speed CNC lathes with inclined beds adopt imported or domestic high-performance CNC systems and their matching motors and drives to achieve two-axis linkage processing. Equipped with high-precision spindles, it has the characteristics of high precision, high speed, and stable operation. It can be equipped with hydraulic chucks and elastic collets, which can effectively save workpiece clamping time. Electric turrets, hydraulic turrets, and servo turrets can be selected. This machine tool is suitable for processing larger parts and realizing thread, circle, cone and other processing. It is widely used in the processing of rotating body products in the automotive industry, electronics industry, motorcycles, home appliances, furniture, lighting and other industries.
Spindle
Equipped with custom-made spindle with high productivity, high rigidity and high precision.
Cross Slide
Integrated screw bearing and integrated screw nut seat.
Bed Frame
Integral multi-cavity honeycomb bed.
High-Speed Gang Tool
In order to shorten the machine adjustment time, we particularly emphasize the interchangeability of tool holders.
Gang Tool Machine X-Axis
The unique gang tool machine X-axis reverse linear rail places the tool in the middle of the slider during cutting, which results in a more reasonable force structure, better cutting rigidity, and greater stability and durability.
Gang Tool Slant Bed CNC Lathe Precision Bench Lathe Torno CNC Metal Machine Tool

Model		HTW-46
Processing range	Max swing diameter over bed (mm)	Φ360
	Max processing diameter (mm)	Φ360
	Max processing diameter of carriage (mm)	Φ100
	Max processing length (mm)	280
	Spindle/Chuck specifications	A2-5/Collet
	Spindle through hole diameter/Bar diameter	Φ56/Φ45
Axis	X-axis travel (mm)	900
	Z-axis travel (mm)	300
	X/Z rapid feed speed (m/min)	30/30
Tool magazine	Tool	Gang Tool
	Shank size (mm)	20*20/Φ25
Appearance	Dimension (mm)	2050*1300*1650
	Weight (kg)	2200
Accuracy	Positioning accuracy (mm)	X,Z≤0.005
	Repeat positioning accuracy (mm)	X,Z≤0.003
Electric	Spindle motor rated power (kw)	7.5/11
	Spindle speed (rpm)	4500
	Control system	SYNTEC/GSK/KND

Standard Configuration:
HIWIN/PMI P- level matching guide rail, HIWIN/PMI C3 grade double nut screw, Imported servo or hydraulic turret, Taiwan spindle, Herg lubrication system, LX coolant system, Fully enclosed cover, C-axis function
Optional Configuration:
Chip conveyor, Auto doors, Fanuc/Mitsubishi/Siemens system, Tool setter, Ethernet functions
Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

---
