Factory Price Stainless Steel, Hot DIP Galvanized Steel, Electro Galvanized, PVC Coated Welded Wire Fence Mesh Panels Rolls Price for Garden Agriculture Poultry

Product Description

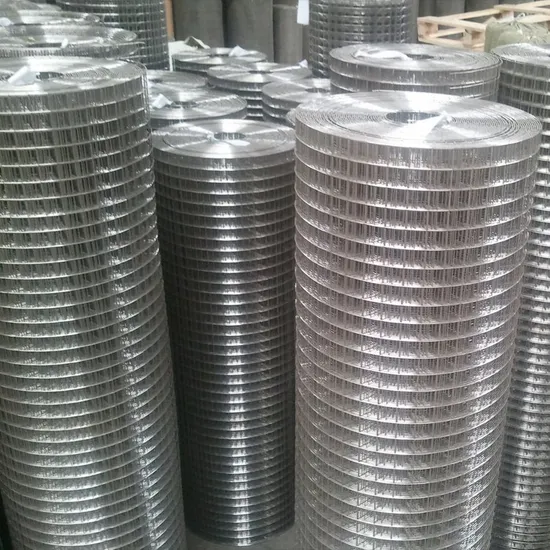

Welded Wire Mesh Panels and Welded Wire Mesh Rolls
(Non-galvanized, Hot-dipped Galvanized, Electro-galvanized, and PVC Coated.)
Welded wire mesh can be divided into 2 types according to different flexibility: welded mesh panel and welded mesh roll. Panel common size is 1800 mm × 3000 mm, we also accept other requirements. Welded mesh roll has better flexibility.
Welded wire mesh is made of low carbon steel wire, which has galvanized and PVC-coated surfaces, which have great anti-corrosion, anti-rust, and weather resistance. Firm structure and high tensile strength are also the features of welded wire mesh, which makes it widely used to make gabion, plaster walls, animal cages, and plant trellis.

Tolerances on Mesh Dimensions
Mesh Dimensions(mm)	Tolerance(mm)
< 50	±2.0
≥50 to < 200	±3.0

Mesh Size and Wire Diameter
Mesh Size		Wire Diameter Before & After PVC Coat
mm	inch	BWG No.	Before Coated (mm)	After Coated (mm)
6.4	1/4	24-22	0.56-0.71	0.90-1.05
9.5	3/8	23-19	0.64-1.07	1.00-1.52
12.7	1/2	22-16	0.71-1.65	1.10-2.20
15.9	5/8	21-16	0.81-1.65	1.22-2.30
19.1	3/4	21-16	0.81-1.65	1.24-2.40
25.4 × 12.7	1 × 1/2	21-16	0.81-1.65	1.24-2.42
25.4	1	21-14	0.81-2.11	1.28-2.90
38.1	1 1/2	19-14	1.07-2.11	1.57-2.92
25.4 × 50.8	1 × 2	17-14	1.47-2.11	2.00-2.95
50.8	2	16-12	1.65-2.77	2.20-3.61

Welded Wire Mesh Roll Size
Mesh Inch	Width × Length
1/2	3 ft. × 50 ft.
1/2	4 ft. × 50 ft
1/2	5 ft. × 50 ft.
1/2	6 ft. × 50 ft.
3/4	3 ft. × 50 ft
3/4	4 ft. × 50 ft.
3/4	5 ft. × 50 ft
3/4	6 ft. × 50 ft.
1	3 ft. × 50 ft.
1	4 ft. × 50 ft.
1	5 ft. × 50 ft.
1	6 ft. × 50 ft.

Welded wire Mesh Panels Common Specification
Mesh		Wire Diameter
Expressed in Inches	Millimeters	Diameter	Millimeters
1" × 1"	25 mm × 25 mm	11 G - 14 G	2 mm - 3 mm
2" × 1"	50 mm × 25 mm	8 G - 14 G	2 mm - 4 mm
2" × 2"	50 mm × 50 mm	8 G - 14 G	2 mm - 4 mm
3" × 2"	75 mm × 50 mm	6 G - 14 G	2 mm - 5 mm
3" × 3"	75 mm × 75 mm	6 G - 14 G	2 mm - 5 mm
4" × 2"	100 mm × 50 mm	4 G - 14 G	2 mm - 6 mm
4" × 4"	100 mm × 100 mm	4 G - 14 G	2 mm - 6 mm
5" × 5"	125 mm × 125 mm	4 G - 14 G	2 mm - 6 mm
6" × 6"	150 mm × 150 mm	4 G - 14 G	2 mm - 6 mm
Note: Special specifications can be customized.

Product Description
Company Profile Dongfu Wire Mesh Company Profile
We were established as a factory in 2009 and registered as a company integrating manufacturing and trade in 2016. For more than 10 years, Dongfu Wire Mesh has been focusing on the production and research and development of metal wire mesh and steel products. Our vision is to be called the most customer-centric company to become China's largest metal product resource integrated supplier. Our products and services include Wire Mesh Cloth, Welded Mesh, Metal Bar Grating, Perforated Metal, Expanded Metal, Architectural Decorative Mesh, Temporary Fencing, Permanent Security Fence, Gabion Product, etc.
We are committed to providing customers in the metal industry with the best customer-centric services through high-quality products, competitive prices, reliable and fast delivery and stable supply capabilities, whether your requirement is large or small. 100% customer satisfaction is our ultimate goal.

---
