China Manufacturing Portable Drugs/Narcotics Detector with Ims Technology

Product Description

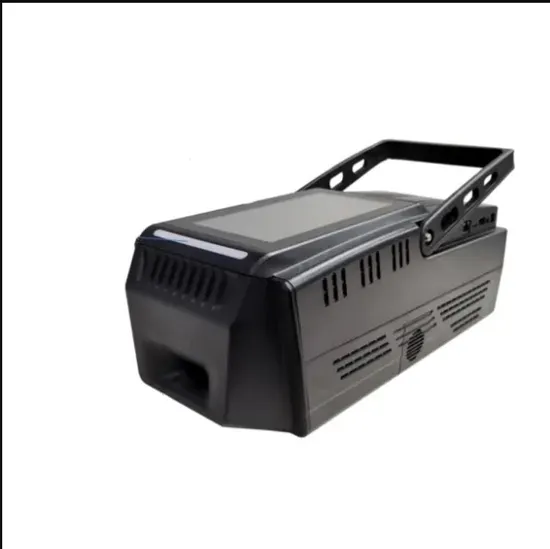

DUAL MODE EXPLOSIVE & DRUGS DETECTOR
Model: HW-IMS-311
Description
The device is based on the principle of ion mobility spectrum (IMS), using a new non-radioactive ionization source, which can detect and analyze trace drugs particles, and the detection sensitivity reaches the nanogram level. The special swab is swabbed and sampled on the surface of the suspicious object. After the swab is inserted into the detector, the detector will immediately report the specific composition and type of drugs.
The product is portable and easy to operate, especially suitable for flexible detection on site. It is widely used for drugs inspection in civil aviation, rail transit, customs, border defense and crowd gathering places, or as a tool for material evidence inspection by national law enforcement agencies.
Performance Advantage
1. High safety, using non - radioactive ionization source
2. Dual mode, detection of common explosives and drugs, or set up single-mode operation
3. Non-radioactive IMS technology, high sensitivity and low false alarm
4. High detection efficiency, continuous detection, automatic calibration, sound-light alarm, automatic cleaning, self-diagnosis, without extra manual operation5.Remote diagnose and User friendly
6.New Android system makes operation much easier and efficient 7.Simple and beautiful appearance design, light weight, easy to carry
Good human-computer interaction design, with 7-inch TFT LCD touch screen
8.Multi-data interface and supporting software, storage of 500,000 raw data
9.Upgradable library
Technical Specs

Technology	IMS (Ion mobility spectroscopy technology)
Analysis time	≤8s
Ion Source	Non-radioactive ionization source
Detection mode	Trace drugs mode
Cold Start-up time	≤20min
Sampling method	Particle collection via wiping
Detection Sensitivity	Nanogram level (10-9-10-6gram)
Substances detected	Cocaine,Heroin,THC,MA,Ketamine,MDMA, etc.
False alarm rate	≤ 1%
Power Adapter	AC 100-240V, 50/60Hz, 240W
Display Screen	7inch LCD touch screen
Com Port	USB/LAN/VGA
Data Storage	32GB, support backup through USB or Ethernet
Battery Working Time	More than 3hours
Alarming method	Visual and Audible
Dimensions	L392mm×W169mm×H158mm
Weight	4.8kg
Storage Temperature	- 20 ºC ~ 55 ºC
Working Temperature	- 20 ºC ~ 55 ºC
Work Humidity	<95% (below 40ºC)

---
