Beer Brewing Fermenting Tank High Capacity Brewing Social Engineering

Product Description

Related Products

Product Parameter

Model	Production capacity	Volume in US Gallon	Heating area	Tank diameter	Height
JTBF-100	100L/day	26US Gallon	0.5	650mm	1500mm
JTBF-200	200L/day	53US Gallon	0.8	850mm	1600mm
JTBF-300	300L/day	79US Gallon	1.2	960mm	1700mm
JTBF-400	400L/day	106US Gallon	1.5	1060mm	2000mm
JTBF-500	500L/day	132US Gallon	1.8	1160mm	2300mm
JTBF-5BBL	5BBL/day	155 US Gallon	1.9	1200mm	2350mm
JTBF-600	600L/day	158US Gallon	2.0	1220mm	2350mm
JTBF-700	700L/day	185US Gallon	2.4	1260mm	2380mm
JTBF-800	800L/day	212US Gallon	2.5	1260mm	2400mm
JTBF-7BBL	7BBL/day	216US Gallon	2.5	1280mm	2450mm
JTBF-1000	1000L/day	264US Gallon	2.6	1360mm	2500mm
JTBF-10BBL	10BBL/day	310 US Gallon	2.8	1460mm	2700mm
JTBF-1500	1500L/day	396US Gallon	3.2	1520mm	2900mm
JTBF-2000	2000L/day	528US Gallon	3.6	1560mm	2850mm
JTBF-2500	2500L/day	660US Gallon	3.8	1650mm	3200mm
JTBF-3000	3000L/day	792US Gallon	4.5	1760mm	3800mm

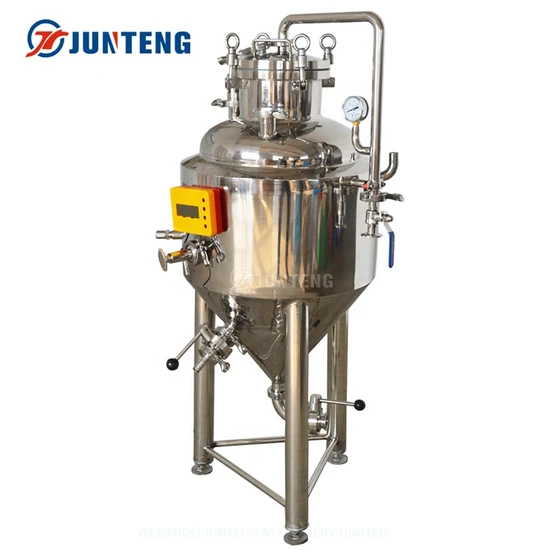

Products Description: Beer fermenters are also called CCT's (Cylindrical Conical Tanks), FV's (Fermentation Vessel), primary fermentor or unitanks as they are used both for fermenting and lagering.Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting. The stainless steel fermenters made by Wenzhou Junteng Machinery Limited can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as overpressure and under pressure valve, CIP cleaning jet, sanitary sample valve, manhole,etc. The design of Junteng fermenters is based on our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting and lagering capacity and configuration sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.

Product Display
Key Components

High Quality and Nicely Built beer fermentation tank for Your Trust and Honored Choice!




01, Glass Manhole

The high pressure sight glass manhole is a way for raw material loading and deep cleaning. The operator can see the mixing process inside the boiler clearly. So that all reactions changes inside the tank can be monitored closely and timely. This manole can be made in stainless steel with a sight glass union too per clients requirement. But all these manles should bear high pressure in order to avoid any air leaks during the production process.






02, Ex-proof Electric Motor
The Ex-proof elctric motor is connected with a gear box to drive the mixing blade to stir the raw materials inside the tank. The raw materials can be liquid, paste or sometimes powder. The Ex-proof electric motor is very important for some specific industries, such as alcohol distillation and chemicals.







03, Mixing Blade
Actually, there are many different kinds of mixing blades, such as paddle mixer, anchor mixer, magnetic mixer, spiral ribbon mixer etc.. The customers can choose the most suitable one per the requirement of application.






04, Liquidmeter
The liquidmeter is usually required if you are going to proceed the liquid materials. You can check and closely monitor the latest liquid level of the material inside the tank during the production process. There are common sight glass liquidmeter, magnetic flap level gauge and so on.
05, Control Panel
The operator can control the raw material loading, heating, mixing and transfer easily by the control panel. The whole process can be done semi-automatic and fully automatic per clients requirement.
Production Process
Company Profile
FAQ
Q: Are you a manufacturer or trading company? A: Junteng is leading manufacturer based in Wenzhou, China. Q: Which kind of product can you make? A: We are producing and supplying distillery equipment, dairy equipment, crafts beer equipment, tanks and sanitary components.
Q: Can you make the products per our requirement? A: Yes, Junteng has strong R&D team that can provide you customized solution and products.
Q: Will you charge us for drafting drawing and designing? A: No, we provide free engineering and designing services for our customer if that is necessary.
Q: What is the warranty of your products? A: The standard warranty is 1 year for our products.
Q: Can you provide service and instruction for installation after delivery? A: Yes, we can provide you free instruction and support online. We can also send engineer to your factory for onsite instruction. But you need to pay the travel expense.
Q: Can we become your local distributor? A: Yes, we are working with many distributors all over the world. We'll be glad to discuss with you for the details if you have interest.
Q: What is your required MOQ? A: The MOQ is 1pc for the stock products. The MOQ of custom made product should be per discussion.

---
