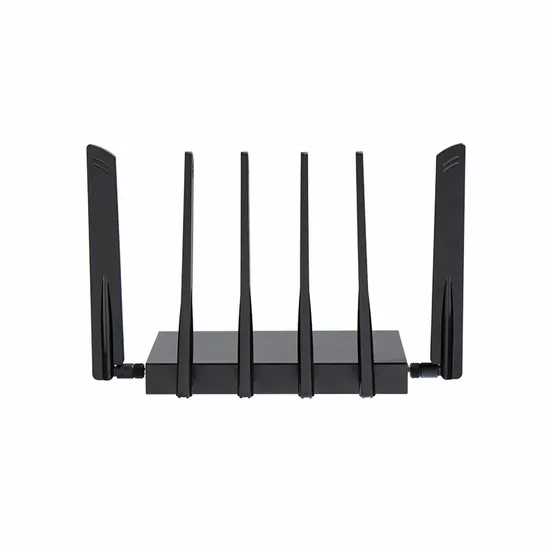

Gigabit Dual Band WiFi6 Router 5g 1800Mbps WiFi Router 5g LTE with Dual SIM Slot

Product Description

Product Description Hardware:
WS7915AX adopts MTK (MediaTek) new dual-core network chip MT7621 program, main frequency up to 880MHz, providing five 10/100/1000M adaptive Ethernet interface, wifi6 chip using the mainstream MT7915DN + MT7905 program, support dual-band 2.4G + 5.8G 11AX protocol; support 1 SIM card slot The wifi6 chip adopts the mainstream MT7915DN+MT7905 solution, supporting dual-band 2.4G+5.8G 11AX protocol; supporting 1 SIM card slots, 1 PCIE card slot design interface for 4G module; 1 M.2_B-KEY (Built-in Micro SIM CARD) for 5G module; built-in TF card.

Wireless.
Compliant with IEEE802.11AX/AC/N/G/B/A wireless network protocol, the highest wireless transmission rate of 1800Mbps; external six 5dBi high-gain omni-directional antennas, with good wireless performance and broader coverage area.

Software:
The original SDK is based on the MTK public SDK and open source OpenWRT developed by the Linux platform; support the secondary development of the SDK.

Product Features:
New dual-core network chip MT7621 solution with main frequency up to 880MHz Provides five 10/100/1000M adaptive Ethernet interfaces Provides 2x SIM card slots (external) Supplied with 1x Micro SD Card (built-in) Supports IEEE802.11AX/AC/N/G/B/A wireless standards Wireless transmission rate up to 1800Mbps; Detailed Photos
specifications

Hardware Specifications
Main chip	MT7621/ Dual-core/880Mhz MT7915DN MT7905DN(CPU+AX+5.8G 2.4G)
RAM	DDR3 RAM 256MB
FLASH	16MB
Protocol standard	IEEE 802.11AX IEEE 802.11ac,IEEE 802.11a IEEE 802.11n,IEEE 802.11g,IEEE 802.11b; IEEE 802.3,IEEE 802.3u;
Wireless rate	1800Mbps
Working frequency	2.4GHz/5G
Antenna	6 * 5dBi Omnidirectional Antenna
interface	1*10/100M/1000M Adaptive WAN port, support automatic flip(Auto MDI/MDIX) 4*10/100M/1000M Adaptive LAN port, support automatic flip(Auto MDI/MDIX) 1*USB 2.0 interface 1*PCIE interface 1*M2 interface 1 *SIM interface 1*SD interface
LED	PWR.SYS.2G.5.8G.
Button	1*RESET button
Whether to support POE power supply	NO support
Product maximum power consumption	< 12W
power supply	DC 12V3A
Software Specifications
Factory default settings	IP address:192.168.1.1 User/Password:admin/admin
Operating mode	AP; ROUTER;
WAN Access method	PPPoE,dynamic IP,static IP,3G
DHCPserver	DHCP server; Client List; static address assignment;
virtual server	port forward DMZ host
support system	original factory SDK,openwrt
Security Settings	Client filtering Mac address filtering URL filtration Remote WEB management
DDNS	Support
Bandwidth Control	Support
static routing	Support
System log	Support
WEB theme switch	Support
Other useful functions	Mac Address Cloning Configuration file import and export Web software upgrade
Other
working environment	Working temperature: 0ºC to 40ºC; Storage temperature: -40ºC to 70ºC; Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing
Accessories	2pcs 5dBi WIFI antenna; 4 5dBi detachable 3G/4G/5G black antennas 1 long 1M round yellow super 5 category network cable; 1 power adapter

Company Profile
HUASIFEI is a manufacturer professional in R&D and producing network equipments, products are included OpenWRT 4G5G wifi router, Vehicle 5G router, outdoor CPE, indoor CPE,MESH Router ,WIFI-6 Router ,4G OTT 4G5G Modem.HUASIFEI .with 50 people R&D team and around 700 people in factory, 20,000 Square meters production scale, is very skilled at processing OEM/ODM design, also builds the long term cooperation with Mediatek, Broadcom,Qualcomm, capably offering good quality product and fast after-sale service.Till now, HUASIFEI's products have exported to over 30 countries.
Packaging & Shipping
FAQ Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Q6. How do you ship the goods and how long does it take to arrive? A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional. Q7. What is your payment term? A: We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you ! Q8. Can you customized logo and packaging? A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.

---
