High-Efficiency Horizontal Dust Collector Filter Cartridge for High Air Volume Industrial Use

Product Description

Detailed Photos

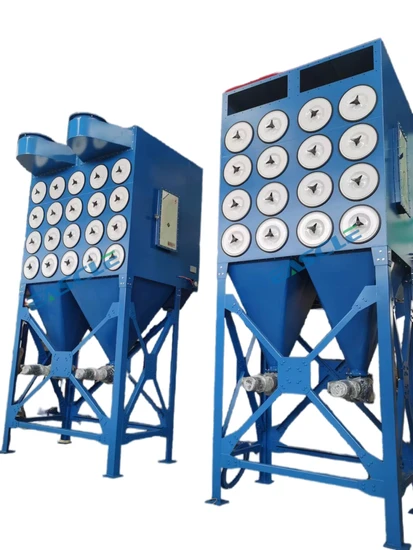

Product DescriptionThe cylinder dust collector efficiently removes dust particles in the air through physical filtration, has the advantages of low energy consumption, high efficiency and easy maintenance, and is suitable for a variety of industrial fields.
Working process
1.Dusty gas collection: under the action of the fan, the dusty gas enters the dust collector.
2.Cartridge filtration: When the dust-containing gas passes through the filter cartridge, the dust is intercepted by the filter material on the surface of the filter cartridge, so as to achieve gas-solid separation.
3.Cleaning process: with the accumulation of dust on the surface of the filter cylinder, the dust concentration in the dust collector gradually increases. In order to maintain the efficiency of dust removal, it is necessary to regularly clean the filter cartridge, such as pulse injection, reverse blowing .
4.Purified gas emission: the purified gas filtered by the filter cylinder is discharged by the fan to meet the environmental protection emission
standard .

Product FeatureFeatures and advantages
1.High dust removal efficiency: The use of high quality filter materials, dust removal efficiency of up to 99.9%, effectively reduce the emission concentration.
2.Low energy consumption operation: during the operation of the equipment, the fan has less power consumption and better energy-saving effect .
3.Compact structure: modular design, small footprint, easy to install and maintain.
4.Convenient maintenance: The automatic control system can realize remote monitoring and fault diagnosis, and reduce the operation and maintenance cost.

Product Parameters

Parameters/Model	Overall dimensions (mm) length*width*height	Rated air volume/Airflow (m³/h)CMH	Purification efficiency	Equipment material (Standard configuration)	Cartridge size	Filter cartridge material	Solenoid valve size/type	Equipment weight (kg)
ECD8-2	1865*1030*3435	2000-6000	99.99%	Q235B*5mm	φ350*660	Wood pulp paper	1 inch non-explosion proof	936
ECD12-3	1865*1030*3900	6000-9000	99.99%	Q235B*5mm	φ350*660	Wood pulp paper	1 inch non-explosion proof	1145
ECD16-4	1865*1030*4365	9000-12000	99.99%	Q235B*5mm	φ350*660	Wood pulp paper	1 inch non-explosion proof	1296
ECD18-3	1865*1520*3900	12000-18000	99.99%	Q235B*5mm	φ350*660	Wood pulp paper	1 inch non-explosion proof	1500
ECD24-3	1865*2050*3900	12000-18000	99.99%	Q235B*5mm	φ350*660	Wood pulp paper	1 inch non-explosion proof	2190
ECD32-4	1865*2060*4365	18000-24000	99.99%	Q235B*5mm	φ350*660	Wood pulp paper	1 inch non-explosion proof	2492
ECD36-3	1865*3090*3900	24000-28000	99.99%	Q235B*5mm	φ350*660	Wood pulp paper	1 inch non-explosion proof	3235
ECD48-4	1865*3090*4365	28000-37000	99.99%	Q235B*5mm	φ350*660	Wood pulp paper	1 inch non-explosion proof	3788
ECD64-4	1865*4075*4365	37000-48000	99.99%	Q235B*5mm	φ350*660	Wood pulp paper	1 inch non-explosion proof	4984
ECD80-4	1865*5110*4365	45000-60000	99.99%	Q235B*5mm	φ350*660	Wood pulp paper	1 inch non-explosion proof	6248

---
