ISO Tongjia Plastic Bottle Chemical Bucket Making Blow Moulding Machine

Product Description

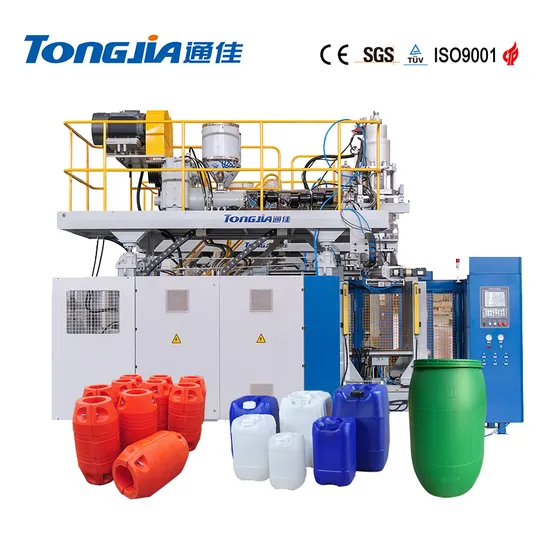

Tongjia 160L 230L plastic barrel drums extrusion blow molding machine
Tongjia TJ-HB160L-230L series blow molding machine is a new generation of fully automatic blow molding machine
specially developed for 120-220L closed barrels and open barrels. The equipment adopts hydraulic servo control, which
is energy-saving and effective. It produces single-ring barrels, The double ring barrel is of good quality.
Tongjia TJ-HB160L-230L series blow molding machine adopts storage die head, new runner design, fast color change,
multi-layer die head can be made according to customer requirements. The equipment adopts a mold shifting system to
move back and forth to avoid the inconvenience caused by the movement of the overall extruder platform, and it is more
convenient to change the mold.

Clampingsystem	Diagonal double tie bar center clamping bi-diredional synchronous high precision linear guideway clamping device
Injection system	DC speed control + Hardenedface gear reducer
Die system	Special steel center-feeding die
Hydraulic system	All imported hydraulic valve +hydraulic servo control system
Control system	Imported PLC + Europe imported complete machine control system (GEFRAN from Italy )

Parameters
Specifications	Units	TJ-HB160L	TJ-HB230L
Max. product capacity	L	160	230
Machine dimension	m	6.5x4.1x4.0	8.4x4.9x5.5
Machine weight	Ton	20	38
Clamping Unit
Mold platen size	mm	1020x1250	1320x1600
Power
Total power consumption	KW	171	248
Avenrage power consumption	KW	100	145
Extruder unit
Screw diameter	mm	100	120
Plasticising capacity	kg/hr	180	280
Screw heating power	KW	25	36
Extruder driving power	KW	90	132
Die-head
Die head heating power	KW	22	45
Accurroujator capacity	L	16	25

1.12 Hours----We will give you reply within 12 hours.
2.Pre-sale service----We provide your professional service in fluent English.
3.Delivery----1~3 months.
4.Free Design----Professional engineers, free designs.
5.Certificates----The third-party verification service provider.
6.After sales service----OEM service provide; Design service provide; Buyer label provided.
Q1:What's your warranty policy?
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from
Seller's factory) or the seller will guarantee the machine for 12 months since the date of starting installation
and adjustment,whichever comes first.
Q2:What's your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.
Q3:What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.
Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems
still can not be solved, welcome to contact us for help.
Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support,
for you personally to overseas assembly and test equipment.
Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.
Q7:What are your terms of payment?
A7:We accept T/T, L/C, D/P,Western Union, Paypal, Money Gram.
Q8:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A8:Please click the bottom of this page or contact our sales on Trade Mange online!

---
