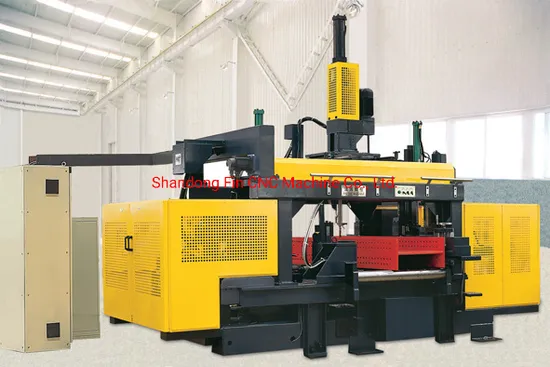

CNC Hydraulic H-Beam Channel High-Speed Three-Dimensional Drilling Machine

Product Description

CNC Hydraulic H-Beam Channel High-Speed Three-Dimensional Drilling Machine 150mm*75mm-1000mm*500mm

Product Description:
SWZ1000C CNC Drilling Machine for H-beams I beams and Channels.
Applicable Industry:
Can be widely used in constructions, building structures, bridges and other industries.
Main Technical Specifications:

Parameter name				Unit	Parameter value	Remark
Scope of work piece	Section steel			mm	150x75~1000x500
	Thickness			mm	≤80
	Length			m	15m	Configure according to customer demand
	Short material limit			mm	Automatic processing≥3000
					Manual processing:690~3000
principal axis	Quantity				3
	drill hole Range		Fixed side, mobile side	mm	¢12~¢26.5
			Intermediate unit	mm	¢12~¢33.5
	Spindle speed			r/min	180~560
	Change the card head quickly			/	Morse taper hole 3#,,4#	Can change to 2#
	Axial stroke		Fixed side, mobile side	mm	140
			Intermediate unit	mm	325
	Axial feed rate			mm/min	20~300
	Moving distance	Each spindle is in the direction of workpiece length		mm	520
		Both sides of the spindle in the up and down direction		mm	35~470	From the lower plane of the workpiece
		The intermediate unit is in the direction of workpiece width		mm	45~910	From the datum side
Cooling mode	Compressed air + cutting fluid			/	/
	Air pressure			MPa	≥0.5
Machining accuracy	Error of adjacent hole spacing in hole group			mm	≤0.5
	Feeding error within 10 m length			mm	≤1
electric machinery power	Three phase asynchronous motor for spindle rotation			kW	4x3	Number of spindles 3
	Intermediate unit X-axis servo motor			kW	1.0
	Z-axis servo motor of intermediate unit			kW	1.5
	Fixed side and mobile side X-axis servo motor			kW	1.0x2
	Fixed side and mobile side Y-axis servo motor			kW	1.5x2
	Moving carriage three phase asynchronous motor			kW	0.55
	Over dimension			mm	About 4400×2400×3500
Main Machine Weight				kg	About 6000

Working temperature: 0ºC~40ºC
power supply:3 phase 4 wire; voltage:380±10%V ; frequency:50HZ
List of the Key Outsourced Components:

NO.	Name	Brand	Country
1	linear guide rail	HIWIN/CSK	Taiwan (China)
2	Electromagnetic hydraulic valve	ATOS/YUKEN	Italy/Japan
3	Hydraulic pump	Just mark	Taiwan (China)
4	servo motor	Panasonics	Japan
5	Servo driver	Panasonics	Japan
6	PLC	MITSUBISHI	Japan
7	Spray cooling pump	BIJUR	USA
8	Flexible extension nozzle	BIJUR	USA
9	Pneumatic solenoid valve	AIRTAC	Taiwan (China)
10	Centralized lubrication	HERG/BIJUR	Japan/USA
11	computer	Lenovo	China

Note: The above is our fixed supplier. It's subjet to be replaced b other brand components with the same quality level if the above supplier can not supply the components in case of any special reason.
Product Feature:

The cnc machines SWZ1000C is mainly composed of main body, CNC slipway, drilling spindle box, clamping device, measuring device, electric system, hydraulic system, cooling system, chip box, etc..

Three automatic control stroke drilling power heads are respectively installed on three NC slide blocks for horizontal and vertical drilling. The three drilling power heads can work independently or simultaneously
The spindle speed of each drilling power head is controlled by frequency converter and stepless adjusted; the feed speed is stepless adjusted by speed regulating valve, which can be adjusted rapidly in a large range according to the material of workpiece and diameter of drilling hole.

Company Introduction:
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Our Service
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.

---
