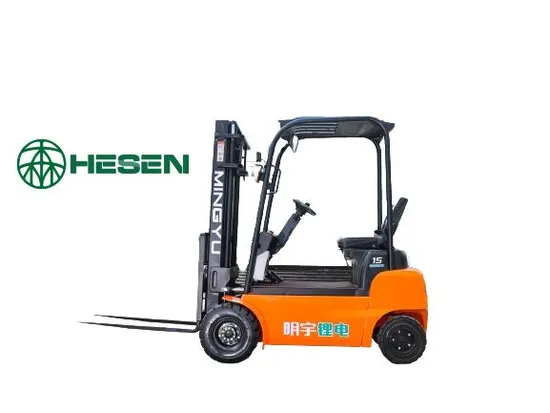

Cheap Price! Warehouse Forklift Rated Load From 0.5 Ton to 5.0 Ton with Customizable Lifting Height

Product Description

Product Parameters

Parameter	Specification	Parameter	Specification
Model	CPD35-B	Maximum Lifting Speed (no load)	380 mm/s
Power Type	Lithum Battery, accumulator	Maximum Lifting Speed (full load)	300 mm/s
Rated Load Lifting Capacity	3500 kg	Maximum Operating Speed (no load)	13 km/h
Load Center Distance	500 mm	Maximum Operating Speed (full load)	12 km/h
Driving Style	Sit-down	Maximum Gradeability (full load)	15%
Length (with fork)	3710 mm	Unladen Weight	4280 kg
Length (without fork)	2598 mm	Number of Wheels (driving/steering)	2/2
Width	1232 mm	Tire Type (front/rear)	Pneumatic
Mast Height (Do not raise above)	2062 mm	Tire Size (front)	28x9-15
Overhead Guard Height	2105 mm	Tire Size (rear)	6.50-10
Maximum Working Height	4183mm	Service Brake	Foot Brake
Distance from Seat Surface to Top Guard Frame	980 mm	Parking Brake	Hand Brake
Wheelbase	1750 mm	Battery Voltage	80V
Battery Capacity	205ah/410ah	Battery Energy	16.4kwh/32.8kwh
Motor Info	Permanent Magnet Synchronous Motor 13.1KW+16.5KW	Battery Controller	Ming Yu Permanent Magnet, efficiency above 90%
Brand of Battery	Yijia Tong	Info of charger	External charger80V/200A
Front Overhang	412.5 mm	Drive Motor Power	10 kW
Rear Overhang	464 mm	Oil Pump Motor Power	12 kW
Front Wheel Track	1005.5 mm	Fork Length	1070 mm
Rear Wheel Track	988 mm	Standard Lifting Height	3000 mm
Minimum Ground Clearance	127 mm	Free Lifting Height	45 mm
Minimum Turning Radius	2450 mm	Fork Adjustment Range	260mm-1100 mm
Minimum Right-angle Aisle Width (for 1100*1100 pallets)	4162.5 mm	Mast Tilt Angle (forward/backward)	6°/12°

Our AdvantagesSame chassis and frame as diesel forklifts.Big wheels and high ground clearance for rough terrains.Mechanical braking system with hill start assist for safety.Emergency stop switch for worker safety.Full hydraulic steering, operational even in the rain.(i) Side panels are stamped by multi-part molds, providing a high-end, visually appealing look.
(ii)The hydraulically assisted multifunctional steering wheel offers precise steering and a comfortable driving experience.
(iii)The center console features an integrated injection molding instrument panel with an LCD display, fault diagnosis system, and customizable language types.High Efficiency and SustainabilityOur AC battery forklifts offer
(i) low operational costs
(ii) strong battery life
(iii) sustainable energy recovery technology
(iv) low maintenance costs
(v)soft sound
(vi) zero emissions.
Compared to lead-acid batteries, lithium batteries provide
(i) a longer lifespan
(ii) faster charging times
(iii) higher energy density
(iv)lighter weight
(v)better environmental friendliness. Detailed Photos
Optional Accessory
Packaging Detail
We use containers for sea freight, with each 40-foot container capable of accommodating 6 to 14 units, depending on the size and configuration of the forklifts. Alternatively, you can opt for rail or road transportation. After Sales ServiceMYZG manufacture 95% of the parts used in our products, ensuring availability for replacements as needed. If you require a spare part, simply inform us with the product model and serial number. We guarantee prompt processing of your request, complemented by our one-year warranty covering replacement or repair of parts damaged during normal operation.You have the option to select the body or arm color, and customize configurations or adjust options according to your requirements.
Our electric forklifts are of excellent quality and have CE certification.Our hot products
FAQQ1:May I know how soon I can get the machine after I transfer the deposit?
A: Usually, if the quantity is less than 20 units, we can finish the production in 15-20 days. We will try our best to offer the machines to you as soon as possible.
Q2:How long the product warranty period?A: The product warranty period is 12 months.
Q3:How long have you engaged in this industry?A:Our trading company has been engaged in this industry for over a decade. With our extensive experience, we offer several advantages over direct factory sourcing:Wide Product Range: We collaborate with multiple manufacturers, allowing us to provide a diverse selection of products to meet various customer needs.
Quality Assurance: We conduct thorough inspections and quality checks on products from different factories, ensuring that only the highest quality items reach our customers.
Streamlined Communication: We handle all negotiations and communications with manufacturers, saving our clients time and effort.
Flexible Solutions: Our broad network enables us to offer customized solutions and configurations that might not be available directly from a single factory.
Efficient Logistics: We have established logistics networks that ensure timely and cost-effective delivery of goods to any destination.
Q4: What are the payment terms?
A: Our payment terms require a 50% deposit upon order confirmation, with the remaining 50% due upon readiness of the goods. We can also negotiate other payment methods

---
