Customized Remote-Control Supplier

Product Description

OEM SERVICE
Cooler IR Remote Control
Apply for Air Purifier,Cooler

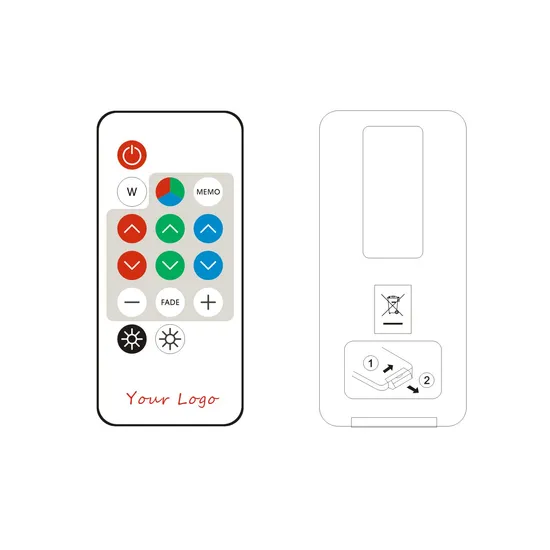

Air Purifier remote control
LPI-M21

Number of keys		1~21
Dimensions		87x40x8mm
Case		ABS Plastic
Buttons Type		PET Membrane
Textplate		YES
Weight (incl. batteries)		17g
Battery		DC3.0V/CR2025 (Include)

Keys: 1~21 keys, optional
Battery: DC3.0V, CR2025
Button letter: Customized
NEC IC/Data code: Customized
Logo: Customized
Plastic color: Customized
1,Operation Force
Each key's operation force is in the range of: 180±40g.f and total deviation in 50g.f. Base on Center.
2,Key Stroke
Vertical press Key with force of 180g, the key stroke within the range of: 0.8±0.2mm Base on Center.
3,Straight Distance: Straight Distance above 8.0M
4,Receiver Direction:Up Down Left Right Direction 15? at min.3M Distance.
5,Room Temp:25ºC
6,Room Humi:65~80% RH
8,Power Voltage: DC 3.0V
9,Test Environment illumination: 350Lux
10,Leakage Currency: Under 3uA No key pressed
11,Working Voltage DC2.2V~DC3.4V
12,Contact Resistance :under 3K Ohms LPINTE, In consumer electronics, a remote control is a component of an electronic device such as a television set, DVD player, or other home appliance, used to operate the device wirelessly from a short distance. Remote control is a convenience feature for the consumer, and can allow operation of devices that are out of convenient reach for direct operation of controls. Commonly, remote controls are Consumer IR devices which send digitally-coded pulses of infrared radiation to control functions such as power, volume, tuning, temperature set point, fan speed, or other features. Remote controls for these devices are usually small wireless handheld objects with an array of buttons for adjusting various settings such as television channel, track number, and volume. For many devices, the remote control contains all the function controls while the controlled device itself has only a handful of essential primary controls. Earlier remote controls in 1973 used ultrasonic tones. The remote control code, and thus the required remote control device, is usually specific to a product line, but there are universal remotes, which emulate the remote control made for most major brand devices

---
