XCMG Heavy Equipment Qy50ka 50 Ton Used Mobile Truck Crane for Sale

Product Description

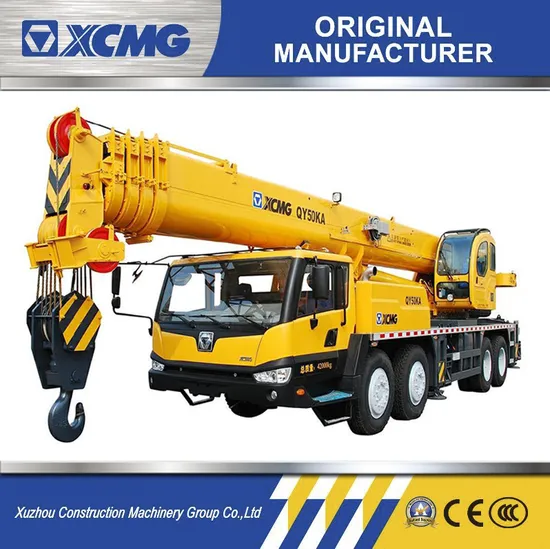

XCMG Heavy Equipment QY50KA 50 ton Used Mobile Truck Crane for sale.
XCMG QY50KA truck crane's structure is compact, the industry operating performance is the highest. Lifting performance and driving performance of a comprehensive upgrade, leading competitors.
Advantages and highlights:
1. Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.
2. Waterproof connector clip is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65. The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45ºC.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.

Item			Unit
Dimensions	Overall length	13770	mm
	Overall width	2800	mm
	Overall height	3570	mm
Weight	Dead weight in travel state	41000	Kg
	1st axle load	7500	Kg
	2nd axle load	7500	Kg
	3rd axle load	13000	Kg
	4th axle load	13000	Kg
Power	Engine rated output	247/2200 276/2200 247/2200 275/2200	Kw(r/min)
	Engine rated torque	1350-1460(1200~1600)	N.m(r/min)
Travel	speed	80	Km/h
	Min.turning diameter	24	m
	Min.ground clearance	291	mm
	Approach angle	17	.
	Departure angle	11	.
	Max.gradeability	40	%
	Fuel consumption of per 100km	42	L
Lifting performance	Max.total rated lifting load	50	t
	Min. working radius	3	mm
	Turning radius at swing table tail	3482	m
	Base boom max.load moment	1822	Kn.m
	Base boom	11.3	m
	Full- extended boom	42.7	m
	Full-extended boom+ jib	57.7	m
	Outrigger longitudinal distance span	5.91	m
	Outrigger lareral distance span	6.9	m
Working speed	Boom elevating time	40	s
	Boom telescoping time	80	s
	Max. slewing speed	2	r/min
	Main winch max. speed(no load)	130	m/min
	Auxiliary winch max. speed(no load)	120	m/min

---
