20-100W Fiber Laser Marking Machine, CO2 Laser Engraving Machine, UV Marking Machine, Double Head Marking Machine

Product Description

Product Description
Fiber/CO2/UV Laser Marking Machine 3D Printing/Laser Marker/Engraving Equipment/ogo Printing Machine Laser Etching Coding Machine for Metal/Plastic/Wood

Model	PEDB-400A	PEDB-400B	PEDB-400C	PEDB-400D
Type	Portable	Desktop	Colorful	Floor Stand
PC includes or not	Not includes PC			Includes PC
Laser Source
Brand	Max, Raycus, IPG and JPT
Mode of operation	Pulsed
Polarization	random
Nominal average output power	10W - 50W
Central emission wavelength	1060-1070 nm ,Q-switched operation Output power
Emission Bandwidth (FWHM)	<10 nm
Long-term average power instability	<5%
Pulse width, (FWHM)	100 ns
Laser switching ON time	180 μsec
Laser switching OFF time	180 μsec
Pulse Repetition Rate* kHz	20-80 kHz
Energy per pulse (PRR = 20 kHz)	0.95 mJ
Typical beam quality, M2	<1.8
Output fiber delivery length	3m
Operating voltage	220V
Max. Power consumption:	600W
Net Dimensions:	70*20*50cm	80*38*72cm	70*20*50cm	143*62*101cm
Net Weight:	44 kg	53 kg	44 kg	130 kg

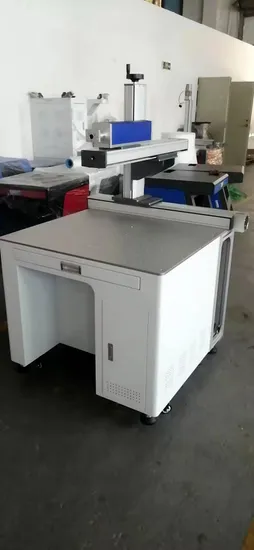

Detailed Photos

Product Parameters

Certifications

Packaging & Shipping

Company Profile

Our Advantages

After Sales Service



Q1: What's the warranty? A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our FAE will teach you how to remove the broken parts by video. Warranty excluding man-made damage. We are real warranty based series number on the machine, not false or empty promises, any too long time warranty is unreliable, ourt warrannty is effective and enforceable.
Q2:How to install and run the machine? A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer. You will get a CD of orginal marking software and online video about basic operation. You also will get a software operation manual and you can be a laser marking master after reading and practics. You can send your questions to our online after-serive 24 hours.
Q3: What's the package? A2: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic Bag for waterproof.
Q4: How can I know the machine is what exactly I need? A4: Please send us your material photo, marking speed demand, marking size demand and so on, you will get a promptly help from us.

---
