| US$3,000.00-50,000.00 | 1 Set (MOQ) |

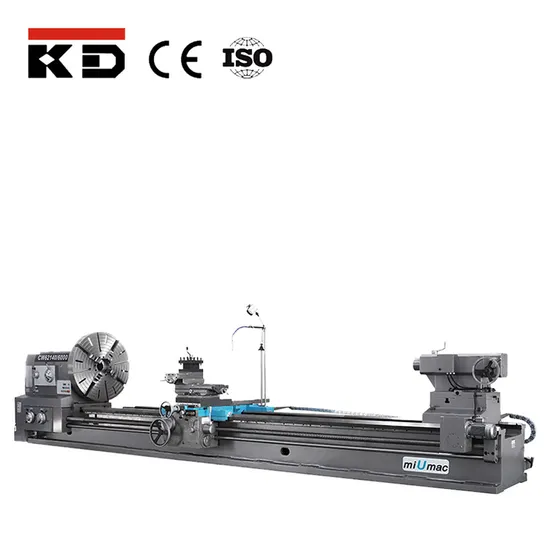

| MODELS | CW61140/CW62140 | CW61160/CW62160 |
| CAPACITY | | |
| Max. swing over bed | Ф1400mm | Ф1600mm |
| Max. swing over carriage | Ф1060mm | Ф1260mm |
| Max. swing over gap | Ф1930mm | Ф2110mm |
| Effective length of gap | 590mm | 590mm |
| Width of bed | 970mm | 970mm |
| Max. length of workpiece | 1.5/2/3/4/5/6/8/10/12m | 1.5/2/3/4/5/6/8/10/12m |
| Max. turning length | 1.3/1.8/2.8/3.8/4.8/5.8/7.8/9.8/11.8m | 1.3/1.8/2.8/3.8/4.8/5.8/7.8/9.8/11.8m |
| Max. weight of workpiece (between centers) | 6000kg | 6000kg |
| SPINDLE | | |
| Spindle nose | A2-15 | A2-15 |
| Spindle bore | Ф130mm | Ф130mm |
| Taper bore of spindle | Metric Ф140 1:20 | Metric Ф140 1:20 |
| Steps of spindle speed | 24(Normal), 12(Reverse) | 24(Normal), 12(Reverse) |
| Range of spindle speed | 2.5~250rpm | 2.5~250rpm |
| Pitch of longitudinal ball screw/diameter | 12mm/Ф70mm | 12mm/Ф70mm |
| Number of longitudinal and cross feeds | 97 | 97 |
| FEED RANGE OF TOOL POST FOR PER REVOLUTION OF SPINDLE | | |
| Longitudinal | 0.1~12mm/r | 0.1~12mm/r |
| Cross | 0.05~6mm/r | 0.05~6mm/r |
| Middle tool post | 0.025~3mm/r | 0.025~3mm/r |
| THREADING | | |
| Metric pitch threads | 1~120mm/ 45 | 1~120mm/ 45 |
| Whit-worth threads | 30~¼TPI/ 42 | 30~¼TPI/ 42 |
| Module threads | 1/2~60D.P/ 48 | 1/2~60D.P/ 48 |
| D.P. Threads | ½~60M.P/ 46 | ½~60M.P/ 46 |
| RAPID TRAVEL | | |
| Longitudinal | 3740mm/min | 3740mm/min |
| Cross | 1870mm/min | 1870mm/min |
| TAILSTOCK SLEEVE | | |
| Taper bore | Metric 80 | Metric 80 |
| External diameter | Ф160mm | Ф160mm |
| Max travel | 300mm | 300mm |
| OTHERS | | |
| Vertical distance from spindle center to installing basis | 51mm | 51mm |
| Max travel of middle tool post | 400mm | 400mm |
| Swing angle of tool post | ±90° | ±90° |
| Max travel of cross slide | 840mm | 900mm |
| Size of tool shank | 50×50mm | 50×50mm |
| Main motor power | 22kw | 22kw |
| Rapid feed motor power | 1.5kw | 1.5kw |
| Coolant pump power | 0.25kw | 0.25kw |
| 3 meter machine overall dimensions (L x W x H) | 6100 x 2080 x 2130mm | 6100 x 2130 x 2300mm |
| Net weight | 14100kg | 15100kg |
