Factory Direct Sale Aluminum CNC Milling Machine for Processing Installation Holes Round Hole Slots Keyhole on Aluminum Profile

Product Description

Jinan SETH Intelligent Equipment Co.,Ltd.
Integrating new technologies and creating a new future with windom&door

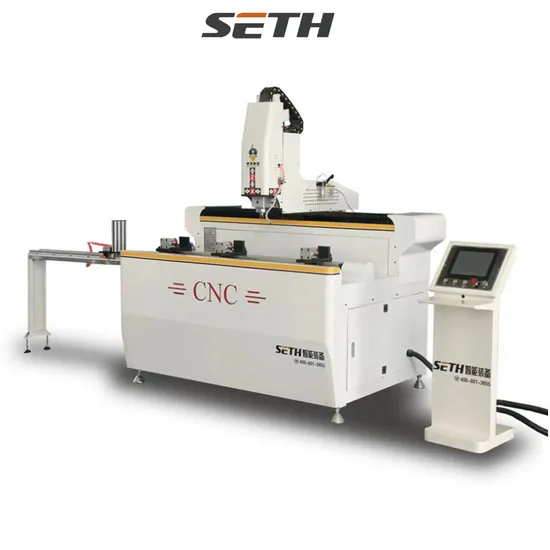

SKX3+1-cnc-1200

Product Description
Equipment features: 1. cnc drilling milling machine for aluminum profile, window-door and curtain wall industry,
it is also suitable for processing milling, chamfering,engraving plane surface and
other procedure.
2. Main spindle adopt air-cooling electric main axis, 3kW power, 0~18000r/ min ,
have the function of high precision, high safety and high reliable.
3. Adopt Taiwan SYNTEC CNC control system. Have professional CADCAM programming software.
It can transform processing G code automatically, have the function of easy operation, high efficiency and
lower labor intensity.
4. Imported guide rail, sliding block, X axis adopt high precision oblique
gear and rack driving. Y and Z axis adopts high precision ball screw drive.
5. The drive is stable, so can improve the precision of whole machine.
6. The worktable can overturn 180°-90°~0°~+90°, Clamping one time
profile can realize three faces processing, When processing deeply
hole (hetero type hole ), it can realize deeply hole processing through
overturn worktable, so can highly improve processing efficiency.
7. Electric pump oil supply system is adopted, and spray cooling device
controlled by system is adopted for cutting tools.
8. The main electrical parts: circuit breakers, AC contactor are all
SCHNEIDER brand.
9. The main components adopt steel structure and they are all through
aging treatment.
Detailed Photos
Product Parameters

power supply	380V/50Hz
Air pressure	0.5~0.8MPa
Total power	6.0kW
Main axis power	3.0kW
Max rotary speed	18000r/min
X-axis longitudinal travel	1200mm
Y-axis transverse travel	300mm
Z-axis vertical travel	280mm
Y-axis speed	50m/min
Z-axis speed	15m/min
Overall dimension	2200×1600×1950mm

Company Profile
JOIN HANDS WITH SETH LEAD TO INTELLIGENCE
Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different clients, and can also be customized according to customer requirements of different grades of products.
The company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design and development engineers, skilled production engineers, experienced production management team and after-sales service that providing you with a strong guarantee.
our main products including aluminum&uPVC profile machining center, saw machine ,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle, Please join hands with SETH to lead intelligence.
Certifications

FAQ
Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine company in china.
Q: SETH's main products?
A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine, CNC milling machine, aluminum punching machine, end milling machine, copy router and corner connector saw, etc; Wood window machines: wood saw, wood window frame machine, vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.
Q: SETH's after-service?
A: 1option:
we have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching, subsidy USD70 per day.
2 option:
On-line Service and All documents and videos for Installation and train operation for free.
