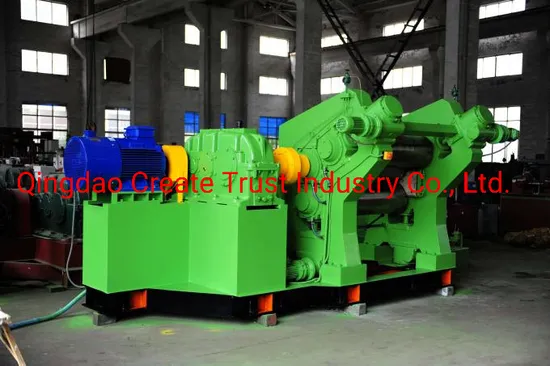

Four/Three Roll Rubber Calender Equipment

Product Description

three roll rubber calender equipment
Qingdao Create Trust Industry Co., Ltd.make high quality rubber machine, from materials to producing, we use the good quality material, complete management system, also excellent aftersale service, we hope to be one reliable factory for you!
1.techincal specification
1). Rubber calender suitable for many rubber products, has high efficiency
2). Rubber calender can according to certain form arrangement, under certain temperature, extends the rubber or the plastic suppression certain thickness and the superficial shape film
3). Rubber calender may carries on to the textile fiber curtain canvas or the steel wire curtain cloth hangs the rubber the machinery.
4). The rubber calender have several type (two rolls/three roll/four rolls)you chose it according your need.
5).Rubber calender made by our factory is mainly used for calendaring rubber film, rubber tape,etc
6).Roller chilled alloy cast iron into a high quality steel production, chilled alloy cast iron rollers with sufficint hardness and wear resistance, and grinding smooth surface,highquality steel roller can do the engravingof the desired pattern. Rollers can pass into the steam and cooling water, to regulate the temperature.
7).Manufacturer from China
2.the Main Parameters of rubber calender

Type	Dia.x Length of roll (mm)	Linear speed of mid.roll (m/min)	Min thickness of calendered product (mm)	Width of calendered product(mm)	Motor Power(KW)	LxWxH(mm)	Weight (t)
XY-3I1120	360x1120	7.5-22.5	≥0.20	900	13.3/40	6050x1500x2240	11.6
XY-3I1400	400x1400	8.8-26.39	≥0.20	1200	18.3/55	5600x1410x2385	15
XY-4F1120	360x1120	7-21	≥0.20	900	18.3/55	6100x1660x2330	13
XY-4F1400	400x1400	8.8-26.39	≥0.20	1200	25/75	6350x1850x2490	18
XY-3L1120	360x1120	2-20	≥0.20	900	37	5500x1700x2300	11.7
XY-5T635	240x635	9	≥0.50	550	7.5	1400x1000x1870	2
XY-5T700	230x700	1.5-13	≥0.50	600	7.5	3600x1620x1030	3.5
XY-4r1730	610x1730	5.4-54	≥0.15	1500	180	7050x4110x3750	64
XY-4r1830	610x1830	6-60	≥0.10	1600	67x4	8250x3860x4640	68

FQA-Problems of customer concern:
About machine performance quality
1. Q: How to guarantee the quality of outsourcing parts?
A: First choice more than 4 suppler by tender, There are strict system and process for inspecting outsourcing parts. And there are outsourcing inspectors, after inspection, qualified goods, labeling and storage. Not qualified, return.
2. Q: Which brand of electric part?
A: Use world famous brands, Siemens, Omron, Toshiba, Schneider, ABB Customer can specify the brand.
3. Q: Which PLC:
A: Siemens, Omron, Mitsubishi
4. Q: How to control the quality?
A: There are inspectors for inspecting equipment quality and performance, after a ssembly, machine run continuously for at least 12 hours at one time, Total running time should be not less than 48 hours.
About installation
1. Q: When the guide engineer arrive at customer's factory?
A: If need installation on site, engineer will arrive at factory within one week after machine arrived at factory.
About after-sales service
1. Q: What is the warranty time?
A: 5 years after machine arrived at factory
2. Q: How to solve the problem?
A: Within half an hour after getting customer' problem, inform the solution way, there are three ways for different conditions. 1, Which can be solved by phone or Email, it will be solved in two hours. 2. Which can be solved by Remote Control, it will be solved within four hours(machine is equipped by Remote Network Control Problem). 3. Which need solve it on site, engineer arrive at factory within one week(in the two years warranty date, engineer has the visa any time of the country where the machine.

---
