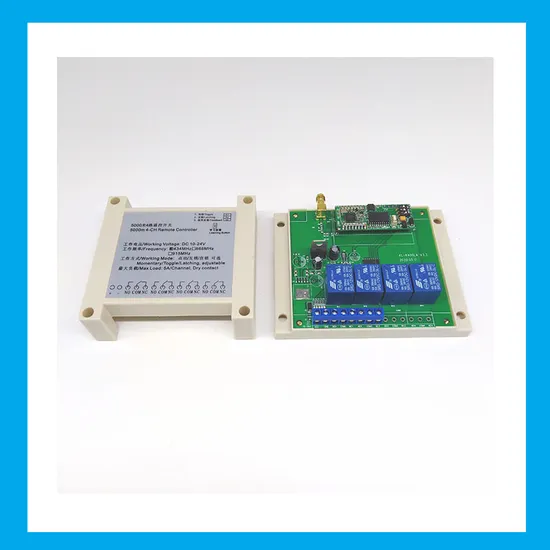

Factory Wholesale Communication Long Range RF Lora Wireless Receiver

US$15.00
1-199 Pieces
US$14.00
200-999 Pieces
US$11.00
1,000+ Pieces

Basic Info.

Model NO.
KLR-K403LA-4CH
Operation
Remote ON / OFF
Model Name
Kl-K400la
Channel
4/2
Operating Voltage
DC9-12V
Static Current
16mA
Compatible Remote Control
Kl5000-2/4
Frequency
434MHz / 868MHz / 915MHz/ Customized
Receiver Sensitivity
-148dBm
Encoding Type
Private Learning Code
Work Mode
Momentary, Latching, Toggle
Output Way
Dry Contact
Transport Package
Carton
Specification
100*68*40mm (without case)
Trademark
kelvin
Origin
Shenzhen
HS Code
8526920000
Production Capacity
50000pieces / Month

Packaging & Delivery

Package Size
15.00cm * 15.00cm * 5.00cm
Package Gross Weight
0.200kg

Product Description

DC 12V 2/4-Ch 6km Remote Control Switch KLR-K403LA
User Manual & Tech data
Tech Data:
DC 12V 2/4-Ch 6km Remote Control Switch KLR-K403LA
Input DC12V (AC220V/380V is customized)
Quiescent Current 16mA
Working Current 65mA
Max Load 7A (Relay Contact)
Channels 2 / 4
Working Frequency 434MHz (Customize 868MHz / 915MHz, shorter distance.)
Receiving Sensitivity 148dBm
Modulation Type FSK+LORA
Coding Type Private Learning Code
Temperature Temperature -10ºC~70ºC
Dimension 100*68*40mm (without case)
