Small Manufacturing Machines Tissue Toilet Paper Making Machine Price/Paper Mill Machinery

Product Description

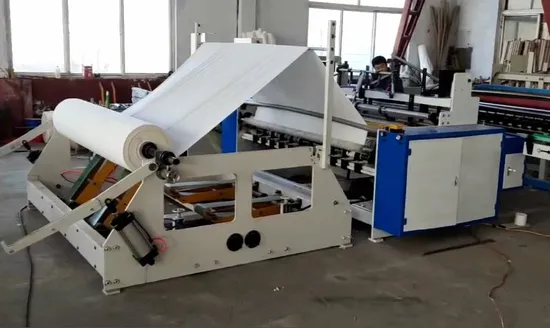

Small Manufacturing Machine Toilet Tissue Paper Rewinding Cutting Packing Making Machine Price Fully Complete Production Line Machine Paper Machinery
About this machine we have two kinds as follow:
1.Fully automatic tissue paper production line
Product parameters
Automatic Trimming Sealing Embossing and Perforating Rewinder adopts advanced PLC technology,variable speed adjustment,electronic braking ,and touch button multimenu type LCD screen operation control panel. And we independently eveloped long distance communication service system.It can detect the machine running at any time.Also the machine is newly added coreless roller shaped rewinding system.It has adopted PLC windpipe-shaped new technology.It does not need to put core or stainless steel pipe.It has fully upgraded the whole machine.

Finished Roll Diameter (mm)	Φ70-135(Tightness adjustable)
Finished Roll Core Diameter (mm)	Φ32~50
Raw Material Diameter (mm)	Φ1500-Φ1800(order)
Raw Material Core Diameter (mm)	Φ76.2mm(Other size are available)
Perforation Pitch	4 perforating blade 110-120mm(Other size are available)
Speed	250M/MIN
Programmable controller	Programmable controller PLC
Unwinding Unit	1-4ply (Order)
Pneumatic system	3HP air compressor, Mini pressure 5kg/c m2, By client
Power	Frequency conversion speed regulator 7.5-18kw(According to model and configuration order).
Overall Dimension(L*W*H)	Depend on the machine model
Weight	Depend on the machine model
Finished Roll Winding	Coreless rewinding system
Embossing Unit	Single , double ply embossing , steel to steel embossing (order)
Edge Embossing Unit	Embossing Unit(order)

2.Semiuatomatic tissue paper making machine
Product parameters
Automatic tissue paper rewinding with Embossing and Perforating Rewinder adopts advanced PLC technology,Semiautomatic blade saw cutter and good quality Water cooling sealing machine.This machine also newly,it can add the core roller and shaped rewinding system.For the sealing machine,it can pack with many kinds.

Model	1880	2800	3000	3500	3600	3700
Raw Material Width(mm)	2100	2800	2900	3000	3500	3600

Finished Roll Diameter (mm)	Φ70-135(Tightness adjustable)
Finished Roll Core Diameter (mm)	Φ32~50
Raw Material Diameter (mm)	Φ1500-Φ1800(order)
Raw Material Core Diameter (mm)	Φ76.2mm(Other size are available)
Perforation Pitch	4 perforating blade 110-120mm(Other size are available)
Speed	250M/MIN
Programmable controller	Programmable controller PLC
Unwinding Unit	1-4ply (Order)
Pneumatic system	3HP air compressor, Mini pressure 5kg/c m2, By client
Power	Frequency conversion speed regulator 7.5-18kw(According to model and configuration order).
Overall Dimension(L*W*H)	Depend on the machine model
Weight	Depend on the machine model
Finished Roll Winding	Coreless rewinding system
Embossing Unit	Single , double ply embossing , steel to steel embossing (order)
Edge Embossing Unit	Embossing Unit(order)

Product Details:
Our company information
Qingdao YiDaFa International Trade Co., Ltd is located in Free Trade Zone, Qingdao, Shandong, China. The registered capital of our company is RMB 5 million. We have 6 production areas, 129 team members, including 39 technical experts, who have rich experience in the field of paper machine design. The main products of our company cover a variety of paper machinery, paper products processing machinery and related parts. We have done this business for more than 20 years in China. In 2014, we founded international trade department in order to stand in the international market.Our mission is to be the leader in paper machinery field. Our principle is Science, Quality and Green. As we know, environmental pollution and waste of resources are two prominent problems in the traditional paper industry. To advocate the concept of global environmental protection, each of our paper machines has the advantages of energy saving, high efficiency and reducing pollution. Especially in waste water recycling use, we have unique processing technology.Welcome any customers from all over the world to contact us freely. It is our sincere hope that we can establish a long-term and stable friendship with our strategic partners. Then we will work and explore together to create a brilliant future.
Why choose us?
1. The business contact on both sides will reply within 12 hours .2.During warranty, our company provide the relevant technical services for free,such equipment quality problem resulting from the design and manufacturing equipment, which the company will be responsible for replacement and maintenance.3.After the expiration of the warranty, our company provide customers with a lifelong technical service and spare parts with preferential price and efficient manner over a long period of time.
Packing and Transportation:
Our certifiacte
FAQ:
1.How long it will take to get the quotation?
we usually give reply within 24hours after getting your inquiry. If you are urgent to get the quotation,please feel free to call me or tell us by email,then we can reply you as the first priority.
2.Can you make paper mill design for us?
Yes,we have professional team with rich experience of paper mill design by CAD software.you only need to tell us your open land dimension,we will make your future paper mill design.
3.How about your machine quality,we are worry about the quality?
Cailun is a mature brand in China,more than 30 years manufacuturing experience of different kinds of paper machines.We strictly manufacture and manage according to IOS9001:2008 System.and can match all the CE standard or more strict standard.our paper machine is running well in more than 20 countries.we are gold supplier on ****** already 4 years.
4.Your machine price is high, is there any discount?
we always provide high quality paper machines,we are paying more attention on oversea market,because of communication time after sales,and also it need very long time to send new parts.our paper machines have enough quality standard to make sure the machine can work more than the real warranty period.our marketing style is quality=price and price=quality,the price will be acceptable for our clients and durable for our machines.anyhow,when we will negotiate the price with each other during our meeting in factory.and get a good satisfaction.
5.Could your engineer teach and train our worker and stay in our factory for long time?
Yes,we have very large engineer installation team,they can train and teach your worker to operate paper machine,but you should pay them salary.
If you need it,please send Inquiry.

---
