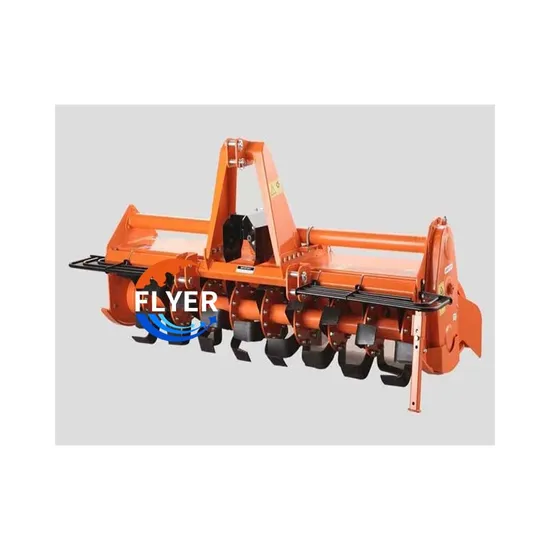

1800mm Working Width Side-Mounted Rotary Tiller for Tractor

Product Description

Product Description
Rotary tiller is a tillage machine that is matched with tractor to complete tillage and harrow operations. It has strong soil crushing ability. It can make the soil finely crushed in one operation, the soil and fertilizer are evenly mixed, and the ground is level. It meets the requirements of dry land sowing or paddy field planting, which is conducive to fighting for farming time, improving work efficiency, and making full use of the power of the tractor. It has the functions of breaking the plow bottom, restoring the structure of the soil plow layer, improving the ability of soil to store water and retaining walls, eliminating some weeds, reducing diseases and insect pests, leveling the ground, and improving the standards of agricultural mechanization operations.
Product Parameters

Model	/	1GQN-120	1GQN-125	1GQN-140	1GQN-150	1GQN-160
Working width	mm	1200	1250	1400	1500	1600
Working	mm	120-180	120-180	120-180	120-180	120-180
PTO speed	R/min	540-720	540-720	540-720	540-720	540-720
Blade quantity	/	24	26	30	34	38
Blade model	/	1T225	1T225	1T225	1T225	1T225
Weight	kg	200	207	214	219	255
Match power	HP	20-30	20-40	25-50	30-55	40-60
One unit Package size	mm	1450*900*700	1550*900*700	1650*900*700	1750*900*700	1850*900*700
Five unit Package size	mm	1450*900*700	1370*600*2500	1510*600*2500	1610*600*2500	1710*600*2500

Model	/	1GQN-180	1GQN-200	1GQN-220	1GQN-240	1GQN-300
Working width	mm	1800	2000	2200	2500	3000
Working	mm	120-180	120-180	120-180	120-180	120-180
PTO speed	R/min	540-720	540-720	540-720	540-720	540-720
Blade quantity	/	50	58	62	70
Blade model	/	1T245	1T245	1T245	1T245	1T245
Weight	kg	358	395	422	458
Match power	HP	55-75	65-100	75-120	90-130	100-150
One unit Package size	mm	2050*900*700	2250*900*700	2450*900*700	2650*900*700
Five unit Package size	mm	2010*750*2500	2210*750*2500	2410*750*2500	2610*750*2500

Model	/	1SGQN-120	1SGQN-125	1SGQN-140	1SGQN-150	1SGQN-160
Working width	mm	1200	1250	1400	1500	1600
Working	mm	120-180	120-180	120-180	120-180	120-180
PTO speed	R/min	540-720	540-720	540-720	540-720	540-720
Blade quantity	/	28	30	36	42	42
Blade model	/	1T225	1T225	1T225	1T225	1T225
Weight	kg	255	267	284	310	322
Match power	HP	20-30	20-40	25-50	30-55	40-60
One unit Package size	mm	1350*900*700	1550*900*700	1650*900*700	1750*900*700	1850*900*700
Five unit Package size	mm	1450*900*700	1370*600*2500	1510*600*2500	1610*600*2500	1710*600*2500

Model	/	1GQN-180	1GQN-200	1GQN-220	1GQN-240	1GQN-300
Working width	mm	1800	2000	2200	2500	3000
Working	mm	120-180	120-180	120-180	120-180	120-180
PTO speed	R/min	540-720	540-720	540-720	540-720	540-720
Blade quantity	/	48	54	60	70
Blade model	/	1T245	1T245	1T245	1T245	1T245
Weight	kg	351	380	420	465
Match power	HP	55-75	65-100	75-120	90-130	100-150
One unit Package size	mm	2050*900*700	2250*900*700	2450*900*700	2650*900*700
Five unit Package size	mm	2010*750*2500	2210*750*2500	2410*750*2500	2610*750*2500

FAO
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc

---
