25L Intensive Banbury Mixer Milling Machine Dalian Deyu

US$18,938.00-19,938.00 1 Set (MOQ)

Basic Info.

Model NO.
X(S)N-25 x 32
Certification
ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Transport Package
Steel Pallet
Trademark
Deyu Machinery
Origin
Dalian China
HS Code
8477900000
Production Capacity
5000 Sets/Year

Product Description

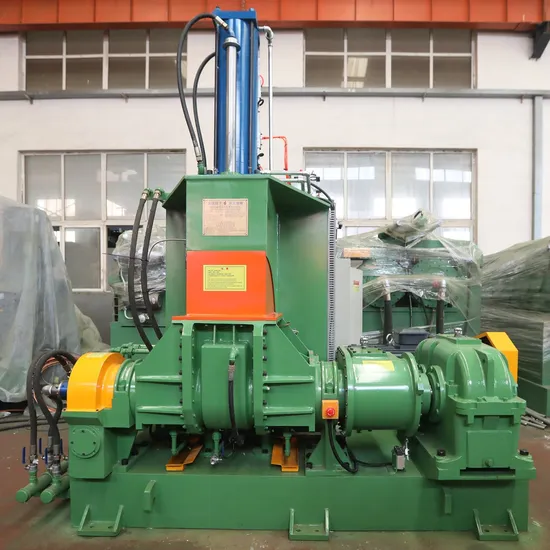

Deyu milling machine/rubber pressure dispersing mixer:
Application: for rubber/plastic plasticating and mixing
Features:
rotor shaft of the machine adopt Taiwan technology, rotor ribbed spiral angle and working length of resonable
design, can make the material to obtain the best effect of kneading, and faster than ordinary milling machine
refinded material 1-2 minutes per session, the rotor edge peak and end face for surfacing welding wear-resisting
carbide, rotor and mixing chamber pressure lead, direct contact with the material of surface are after throwing grinding
hard chromium plating(0.1mm) as bright as mirror and wear-resisting corrosion resistance. Rotor outside contact pressure type non-lubricated seal structure, the sealing ring is made of high quality copper manufacturer wear-resisting
good sealing effect.
Mixing chamber and top of the frame joint that hang a wall, use arc board slot labyrinth seal structure, seal dustproof
effect is good. Electric control system use the south Korea import LS electrical components, effectively reduce the incidence of the failure, a perfect and reliable.
Detailed specification:
X(S)N
3 x 32
X(S)N 5 x 32 X(S)N
20 x 32
X(S)N
25 x 32
X(S)N
35 x 32
X(S)N
55 x 30
X(S)N
75 x 30
X(S)N
110 x 30
X(S)N
150 x 30
total volume of mixing chamber 8 L 15 45 55 75 125 170 250 325
working volume of mixing chamber 3 L 5 20 25 35 55 75 110 150
driving motor power 5.5Kw 11 37 37 55 75 110 185 220
tilting motor power 0.55 Kw 1.1 1.5 1.5 2.2 3 3 5.5 11
tilting angle 140 140 140 140 140 140 140 140 135
rotational speed of the motor
(front/rear)
32/24.5
r/min
32/23.5 32/27 32/27 34/28 34/28 34/28 30/24.5 30/24.5
pressure of compresor air 0.5/0/8
MPa
0.6/0.8 0.6/0.8 0.6/0.8 0.5/0.8 0.6/0.8 0.6/0.8 0.6/0.8 0.6/0.8
capacity of compressor air ≥0.3
m³/min
0.5 0.7 0.7 0.9 1.0 1.0 1.5 2.0
pressure of cooling water
(rubber mixing)
0.2-0.4
MPa
0.2-0.4 0.2-0.4 0.2-0.4 0.3-0.4 0.3-0.4 0.3-0.4 0.3-0.4 0.3-0.4
pressure of heating steam
(plastic mixing)
0.5-0.8
MPa
0.5-0.8 0.5-0.8 0.5-0.8 0.5-0.8 0.5-0.8 0.5-0.8 0.5-0.8 0.5-0.8
dimension 2000
1000
2220
1850
1200
2580
2675
1650
2560
2675
1650
2560
3200
1900
2950
3230
1927
2958
3325
2615
3105
4075
2712
3580
4250
2750
4106
gross weight 2 ton 2.1 4 4.5 6.3 7.1 9.5 14.5 19.5
