High Quality Three Layers Co-Extrusion Rotary Die Film Blwoing Machine

Product Description

PLEASE BE FREE TO CONTACT WITH ME

Ms. Anna Chen
Tel	+86-17681763237
QQ	1183272897
Website	ssmachine.en.made-in-china.com
Address	Zhejiang Province, Ruian City, West Yanjiang Road,#173
I'm looking forward to hearing from you >_<

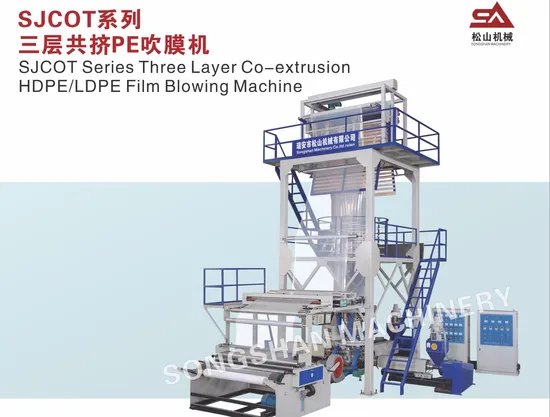

1. The Machine(SJCOT Series Three Layers Co-extrusion HDPE/LDPE Film Blowing Machine)
The Film blowing machine is used to blow the molten LDPE, HDPE and LLDPE into bubble film. Its products are widely used to pack fruit, food, clothes, textile, daily necessities and other industrial products. 2. Main Technical Variables:

Model		SJCOT-55	SJCOT-60	SJCOT-65
Features	Raw Material	HDPE, LDPE, LLDPE; Virgin and Recycled
	Film Width	800mm	1500mm	2000mm
	Average Output	80Kgs	120Kgs	150Kgs
	Film Thickness	0.008mm-0.15mm
	Power supply	380V, 3Phase, 50Hz
	Weight	3000KG	3500KG	4000KG
	Dimension	6M×5M×5.5M	6M×6M×6M	6M×7M×7.5M
Extrusion Unit	Screw& Barrel Diameter	50mm×2 55mm×1	55mm×2 60mm×1	60mm×2 65mm×1
	Screw& Barrel L/D ratio	32:1
	Motor	15KW×2 22KW×1	18.5KW×2 30KW×1	30KW×2 45KW×1
	Gearbox	146/173	146/173	173
	Die Head Type	Rotary Die Head
	Die Size	400MM	450MM	600MM
	Heating	50kw	60kw	80kw
	Blower	7.5KW
Film Taking-up Tower	Upper Tower Type	Rise and Fall
	Roller Length	1000mm	1700mm	2200mm
	Roller Working Way	Opened and Tightened by Air Cylinders
	Take Up Motor	1.5KW
Winding Station	Winder Type	Double winding station
	Rollers Length	1000mm	1700mm	2200mm
	Torque Motor	15N/M×3
	Max. Winding Diameter	600mm
Control Panel	Temperature control	10 zones
	Electronics	Top China Brand
	Inverter	3pcs
Optional Equipment		Hopper loader, Corona, Mechanical Screen Changer

3. More Detailed Pictures
Based on Zhejiang, we face the whole country, and approach to the world.
4. High-quality Machines
Ruian Songshan Machinery is studying and adopting international standards and industry-leading technology to create high-quality film blowing machine and high-speed bag making machine, and flying high around the world with "integrity, responsibility, innovation and dedication".
5. Workshop& Warehouse
Ruian Songshan Plastic Machinery Co., Ltd. Was founded in 1995, located in beautiful scenery city-Rui'an near east sea. With mature technologies and abundant manufacturing experiences, Songshan is a qualified plastic machinery manufacturer that specializes in making all kinds of sealing & cutting machine, all kinds of blown film extruder and all kinds of plastic recycling machine. It is integrated manufacture, sales and after sales.
6. Delivery& Package
With advanced technologies, good quality and perfect after-sales service, our all products are far distributed to Russia, Iran, India, Malaysia, South Africa, Indonesia, and Algeria and so on.
7. After Service
Delivery Date: 30 days after deposit
Guarantee: One year. (Also, we will offer you our best after service after one year warranty period as you will afford our technician's cost which includes his visa, air ticket, hotel, food and also their salary USD80 per day per person.)
8. The quality creates the brand.
Since "Songshan" establishment, it has become one of the most advanced plastic machinery manufacturer in Zhejiang. We place great emphasis on research and development and search for new and better way to improve our machine.

Dear friends:
This is Anna, from Sales Department of Ruian Songshan Machinery. If you have any questions about our machines or you're interested in our high output film blowing machines or high-speed bag making machines, please be free to contact with me by email, whatsapp or wechat.

---
