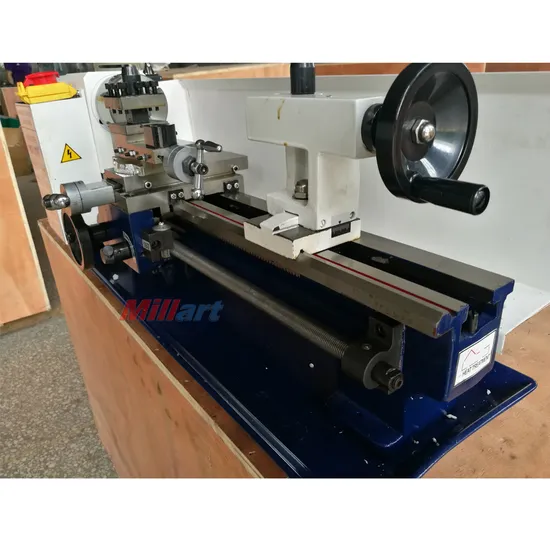

Variable Speed Mini Lathe Cjm0618, Small Bench Lathe Machine

Product Description

Product description:
1,This precision mini lathe is designed to perform various types of processing jobs.Counterface
turning,drilling,threading,and cutting jobs on materials made up of round bar materials can be
performed with this machine.
2,This machine can be used in areas such as mini precision pars
processing,sample processing and modeling works.
This machine is DC motor drived.
3,CJ0618 miniature lathe spindle speed 50-2500RPM continuously adjustable;
4,The feed speed can be adjusted according to the requirements of different workpieces.

Technical parameter :
Technical parameter :

Model	CJ0618
Distance between centers	200/300/350mm
Swing over bed	180mm
Swing over cross slide	110mm
Spindle taper	MT3
Tailstock taper	MT2
Chuck diameter	80mm
Spindle bore	20mm
Cross slide travel	65mm
Tool slide travel	35mm
Range of metric threads	0.5-2.5mm
Range of imperial threads	12-52TPI
Spindle accuracy	0.01mm
Spindle speed	50-2500/100-2500RPM
Power of motor	400W/550w
Voltage/Frequency	230V/50Hz or 120V/60Hz
Net weight	35Kg/38Kg/40Kg
Gross weight	38Kg/42Kg/45Kg
Packing size	660/760/810× 310× 320mm

Standard accessories:

Change gear

Splash guard

Dead centers

3-jaw chuck

Oil gun

Operation manual

Optional accessories:

Steady rest

Follow rest

Lathe tool

Face plate

Live center

Stand

Tool post cover

Thread chasing dial

4 Jaw chuck

Work lamp

Coolant system

Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
