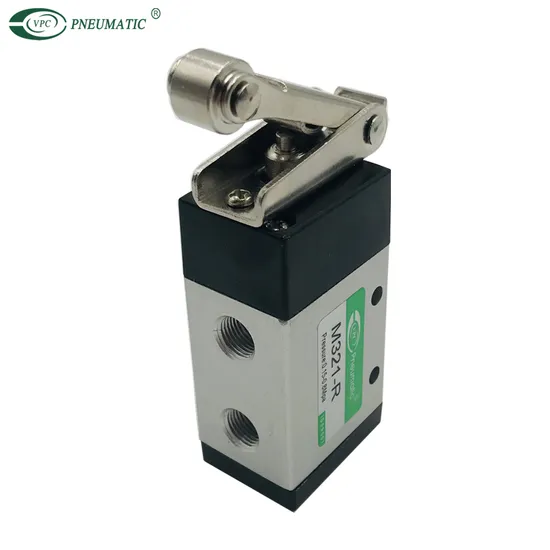

3/2 Way Pneumatic Roller Lever Valve

Product Description

Airtac Type Mechanical valve 1. Exhaust outlet locates over the body, which is convenient to install muffler to decrease noise and pollution.
2. The external force required by direction-change of series of M5B, M5R and M5L is provided by external mechanism, which can be used for position test or [stroke switch] limit switch.
3. M5C,M5D,M5Y,M5PF,M5PM,M5PP,M5PL and M5HS are operated manually, owning control joints with several structure forms and suitable for application under different conditions.
4. It is in sliding column structure that the control force is not influenced by working pressure (that is, there is no back pressure effect); internal circle is sealed with good tightness and the direction-change is sensitive.
5. Lubricant is not necessary.
6. Multi-mounting makes it convenient to install and apply.
7. The control joints of series of M5C,M5D,M5Y,M5R and M5L are made of metal which has longer service life and more reliable and steady performance.
Ordering Code: MSV 86 32 1 R
MSV(Specification Code): Mechanical Valve
86(Series Code): 86 Series/98 Series
32(Position and Way NO)32: Two-position Three-way
52: Two-position Five-way
1(Joint Pipe Bore) 1: G1/8"
2: G2/4"
R(Button Type) Blank: Basic Type
R: Roller Type
TB: Selective Knob
LB: Strengthened Knob
PB: Large Round Button
PP: Plat Round Button
PPL: Convex Round Button
EB: With Lock Button

Model				MSV86321			MSV86522			MSV98322
Working Medium				40 Micron Filtered Air
Position and Way NO.				Two-position Three-way			Two-position Five-way			Two-position Three-way
Effective Sectional Area				12mm 2			16mm 2			16mm 2
Joint Pipe Bore				G1/8"			G1/4"			G1/4"
Working Pressure Range				0-0.8MPa
Operating Temperature Range				0-60°

M3PM210-06
M3PM210-08
M3PL110-06
M3PP210-08
M3Y210-08
M5PM210-06
M5PM210-08
M5PL110-06
M5PP210-08
M5Y210-08

Model	MSV98322
Button type	TB:Selective knob	PB: Large Round Button	PP: With lock button	PPL: Convex Round Button	R:Roller type
Port Size	G1/4''
Working Medium	Filtered Air
Porsition and Way NO.	3/2 way
Working Pressure Range	0~0.08Mpa
Operating Temperature Range	0~60°C

FEATURES

Action Type	Direct
Mount	Inline or Manifold
Pressure	0~0.8 Mpa (0~114Psi)
Temperature	-5~60 Celsius degree
Medium	Air

SPECIFICATIONS

MSV98321PPL	3/2 Green Convex Push Button Valve	1/8	0.89
MSV98322PPL	3/2 Green Convex Push Button Valve (Exh. 1/8")	1/4	0.89
MSV86521PPL	5/2 Green Convex Push Button Valve	1/8	0.89
MSV86522PPL	5/2 Green Convex Push Button Valve (Exh. 1/8")	1/4	0.89

Mechanical Valve
Model: JM-05, JM-06, JM-06A, JM-07
Working mdium: 40 micron filtered air
Position and way number: Two-position, three-way, Two-position, two-way.
Joint pipe bore: G1/4"
Working pressure: 0~0.8MPa
Operating temperature: ~60C
05: Selective knob
06: With lock button
06A: Flat round button
07: Roller type

Model	JM-05	JM-06	JM-06A	JM-07
Working Medium0	Micron filtered Air
The position Counting	Two-position Theree-way
Joint Pipe Bore	G1/4
Operating Temperature	0~60 degree centigrade
Working-Pressure	0~0.8Mpa

ADVANTAGE

1) Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.

2) Aluminum Surface is polished and hard anodized.

3) To import Germany grease to provide firm less-friction support

4) O-ring is imported from Taiwan.

5) 100% leakage testing under low pressure and high pressure.

6) 1 year quality assurance after shipment.

7) After sales technique support

Specifications MSV Series Solenoid Valve 1. High quality
2.Competitive price 3.Low loss 4.Fast delivery

---
