Power Pallet Truck-2.0ton, 2.5ton, 3.0ton

Product Description

Heavy-duty design for capacities of 2Ton, 2.5Ton, 3Ton.
• Powerful high-quality DRIVE UNIT From Germany.
• American Curtis controller.
• EPS-Electric Power Steering.
• Side battery exchange design makes battery replacement more convenient and safe.
• Robust and Ergonomic Design.

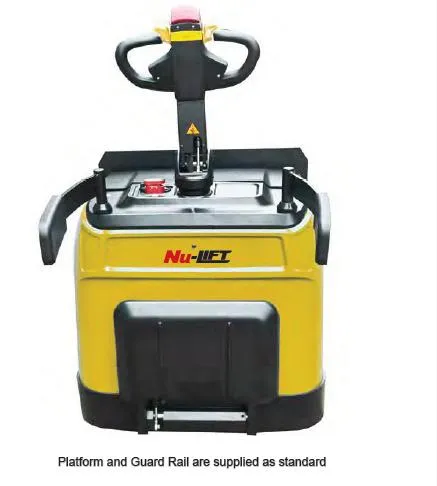

• With foldable platform and Guard Rail.

Model

NET20

NET25

NET30

Characteristics

Drive Type

Electric

Operate Type

Pedestrian/Stand-on

Capacity

2000

2500

3000

Load Centre

Wheelbase

Y

mm

1435

1435

1450

Weight

Net Weight

kg

700

700

730

Wheel

Wheel Material

PU

Front Wheel

b2

mm

80

Back Wheel

b3

mm

124

Drive Wheel

b4

mm

230

Distance of Front Wheel

b10

mm

395

Distance of Back Wheel

b11

mm

540

Size

Min Height of Pallet

h6

mm

85

Llifting Height

h3

mm

85-200

Length of the Truck

I1

mm

2375

2375

2390

Width of Truck

bw1

mm

800

Length of Fork

mm

1150

Width of Fork

b5

mm

580

Ground Clearance

b7

mm

40

Hight of Truck Body

b8

mm

800

Width of Single Fork

e

mm

185

Performance

Turning Radius

Wa

mm

1720

1720

1735

Drive Speed with/without loading

Km/h

5/5.3

Lifting Speed with/without loading

mm/s

35/45

Lowering Speed with/without loading

Km/h

50/40

Electric engine

Power of Drive Motor

kW

1.3/1.5(EPS Electronic steering)

Power of Lifting Motor

kw

2.2

Capacity of Battery

V/Ahw

24/210(270)

Weight of battery

Kg

210

Size of Battery (L×W×H)

mm

790×210×576

---
