Industrial Pressure Timber Treatment Plant Wood Autoclave

Product Description

Product Description
Industrial Pressure Timber Treatment Plant Wood Autoclave
Shandong Mosen Machinery Co. ltd company specializes in Wood Impregnation Preservation Treatment Autoclaves with more than 15 years of experience. We could customize according to your design.
THE IMPREGNATION CYCLE OF WOOD USING VACUUM
Phase 1: Initial Vacuum
The pile of wood, once positioned on the powered trolley of the autoclave, is placed inside the plant to start the cycle.
The hermetic closing of the door enables the machine to begin treatment by starting the vacuum pump. This phase, which is very important for the success of the cycle, frees the pores of the wood of air, by generating a "vacuum" which will allow the wood "to breathe" in the preserving solution.
The length of the vacuum phase can vary from 30 to 90 minutes according to the characteristics of the wood.
Phase 2: Filling
Once the first phase is over, the vacuum is used to convey the treatment solution from the lower tank to the autoclave positioned above.
A level sensor that sends the plant computer a control signal controls the filling phase.
Phase 3: Application of pressure
The 3rd treatment phase has the important task of "forcing" the solution into the wood. The pressure pump may operate for from between 30 to 180 minutes depending on the characteristics of the wood.
The combined action with the vacuum will enable the active principles to establish themselves deep in the wood thus guaranteeing long lasting protection.
Phase 4: Discharging the solution
On termination of the treatment phases, the solution not absorbed by the wood returns to the lower tank by means of a discharge valve positioned on the bottom of the autoclave.
Special automatic systems top up the salt contents and restore the level of the impregnant so that it is ready for a new cycle. All solution not absorbed is available for a new cycle without any waste.

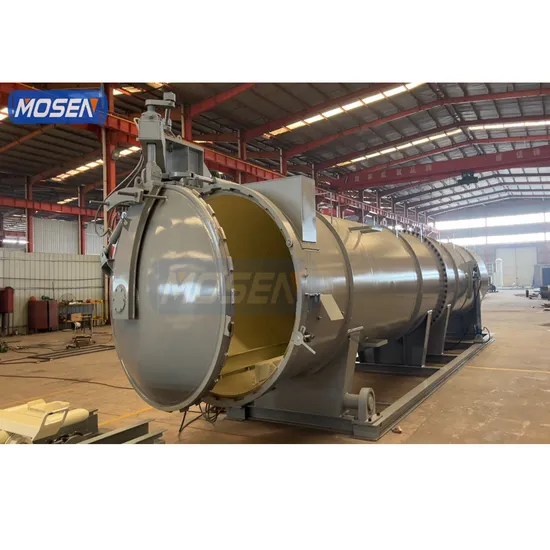

Detailed Photos
Product Parameters

MODE	DIAMETER	LENGTH	CAPACITY	D/PRE	VACUUM	VOLTAGE
DL1080.A	1000MM	8000MM	6.28m³	1.4Mpa	-0.098	380V
DL1580.A	1500MM	8000MM	14.1m³	1.4Mpa	-0.098	380V
DL1780.A	1700MM	8000MM	18.1m³	1.4Mpa	-0.098	380V
DL17120.A	1700MM	12000MM	27.2m³	1.4Mpa	-0.098	380V

Production Application
1. Now the application of preservative wood is wide, from private courtyards to park scenic spots, from outdoor wooden landscape to house construction, you can see the shadow of preservative wood. Landscape such as wooden boardwalk, outdoor wooden floor, grape frame, flower frame, external porch frame, pro horizontal platform construction, water side or high wooden railings, park seats, road signs, water wheel, wooden bridge, flower box and so on.
2. Such high-grade areas are protected by wood wax oil. In terms of wood structure construction, such as building foundation construction, roof rafter components, heavy wood structure frame, ancient building restoration, etc., new environmental protection wood can even be used in indoor humid environments such as kitchens and bathrooms. It is believed that in the near future the preservative wood will step by step into our daily life.
Why Choose Us
Shandong Mosen Machinery Co., Ltd was established in 2004. It is a national D1, and D2 pressure vessel manufacturer with integrated design, manufacturing, research, and development in northern China. Below advantages:
1 . The company's food sterilization machine, jacket cooker, etc. Steam cooking equipment-related products and composite autoclave, rubber vulcanization autoclave.
2 . have passed ISO/ASME/DOSG & CE qualification certification and the products have a wide range of customers worldwide. The company's equipment production adopts advanced automatic welding, testing, and installation equipment.
3 . has a production and R&D team of more than 200 people, ensuring that every product in the factory meets the national pressure vessel production standards.
Packaging & Shipping
1.We will deliver wood autoclave by LCL/20'FCL/40'FCL depending on your order.
Before delivery, our professional technician will do a trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.
2.When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.
by LCL/20'FCL/40'FCL depending on your order.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer.
Q: How long the warranty will be?
A: 5 Year warranty.
Q: How about the installation? And what if the machine goes down?
A: We will do that. There are two options.
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as a ticket, visa,
accommodation, and labor costs shall be on your side.
b. On-line service will be provided. If still is under the guarantee period, the necessary accessories and parts will be provided
free, but the transportation cost shall be on your side.
Q: Do you take L/C?
A: Yes, we accept L/C, T/T, and irrevocable L/C payable.
Q: Can we become your distributor in our country?
A: Yes, welcome you! More details will be discussed if you are interested in being our agent.
If you want to know more about our machine, welcome to our company for detailed information. Here we have professional engineers and technicians to instruct you.

---
