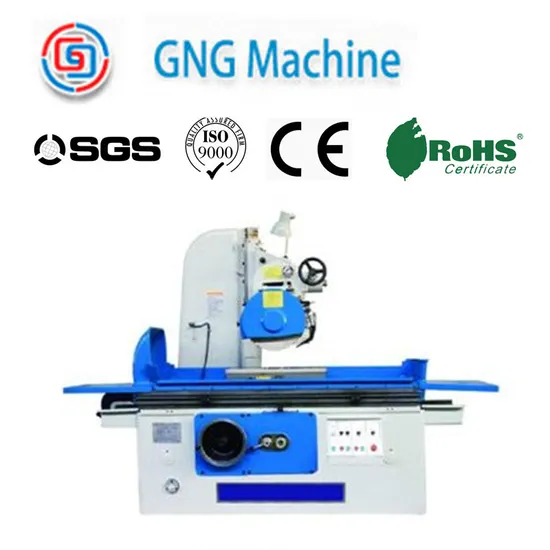

Electric Wheel Head Moving Surface Grinder

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Surface
Grinding Machine
CNC or Not: Normal
Max. Grinding Diameter: 300
Max. Grinding Length: 1000
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: M7130
Voltage: 220V
Power(W): 8630W
Dimension(L*W*H): 284X171X213cm
Weight: 3490kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Packed in playwood case
Delivery Detail: 30-45days
Specifications
T-slot number X W: 3X18
Table size: 300X1000mm

M71 wheel head moving surface grinder
Item/Model		Unit	M7130
table size(WxL)		mm	300x1000
max. machining dimension(WxL)		mm	300x1000
max. distance between spindle center line and worktable surface		mm	575
longitudinal moving speed of worktable		m/min	5-25
T-slot number x W		mm	3x18
wheel head cross moving	continuous feed speed	m/min	0.5-4.5
	intermittent feed speed	mm/t	3-30
	hand wheel feed	mm/gra
wheel head vertical moving	rapid speed	mm/min
	feed of handwheel	mm/gra	0.005
wheel head motor	power	kw	5.5
	rotation speed	rpm	1440
total power		kw	8.63
max. loading capacity of worktable with chuck		kg	470
chuck size (W x L)		mm	300x680x1
wheel size (ODxWxID)		mm	350x40x127
machine dimension(LxWxH)		cm	286x154x203
package dimensions(LxWxH)		cm	284x171x213
machine weight		t	3.49

---
