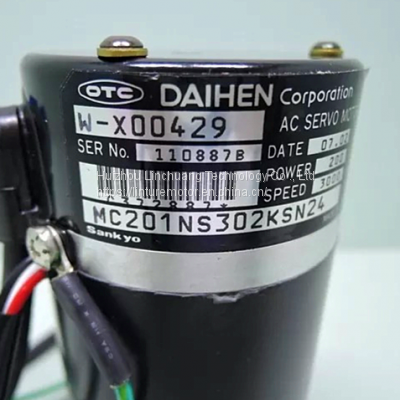

MC201NS302KSN24 Nidec Sankyo OTC DAIHEN electric Rotary Servo Motor

Product Details

Product Description

Product Description
Detailed Product Description
Category:Model:Rated Power:Series:MOQ:Brand:High Light:

Industiral AC Servo Motor	S10HL02
100W	S10HL02
1	Nidec Sankyo (Japan)
ewing machine servo motor,electric servo motor

Nidec Sankyo OTC DAIHEN AC SERVO MOTOR W-L00574A S10HL02 100W Industrial Electric Motors
Nidec Sankyo Industrial Servo Motor's Use Applications
Embroidery Machine,Textile Machine,Packaging Machine etc
Removal Robot
Conveyer Machine
Processing Machine
Precautions
Using the motor with rotations of 180 degrees or less will reduce the encoder's rotational accuracy.For a motor equipped with a brake, follow the brake voltage and polarity specifications.If the brake voltage is less than 12 V or the polarity is reversed, the encoder's rotational accuracy will be reduced.
Installing Precautions
Never remove the encoder or dismantle the motor body.
The motor shaft has anti-rust oil applied at the shipment. Please wipe off the oil before installing the motor. Make sure to perform centering (alignment) carefully and properly.
Operating the motor without sufficient alignments might cause vibrations or a shorter service life of the motor.
Installation Orientations and Oil Seals
The motor can be installed either vertically or horizontally. Please observe the following precautions.
Horizontal installation: Face the cable pull unit down in order to protect the motor against oil, water and dust.
Vertical installation : For a motor combined with a decelerator being on top of the motor shaft, use an oil sealed motor to prevent the decelerator oil from seeping into the motor.
Features
Suitable for applications with high speed rotations.Can be used for most applications.
Suitable for applications with low mechanical rigidity such as drive belt machinery.
Types of Sankyo Industrial AC Servo Motor

Inertia	Low Inertia Middle Inertia High Inertia
Flange Size	40 mm x 40 mm 60 mm x 60 mm 80 mm x 80 mm 130 mm x 130 mm
Rotational Speed	Rated Motor Speed / Max. [r/min] 2,000 / 3,000 [r/min] 3,000 / 6,000 [r/min]
IP Code	IP65 IP67

---
