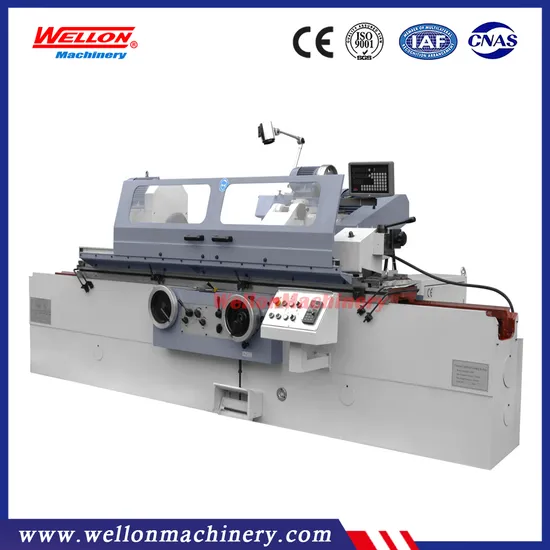

Cylindrical Grinding Machine M1350 External Grinding Machine

Product Description

Product Description
Cylindrical Grinding Machine M1350 External Grinding Machine
Detailed Photos
Product Parameters

Performence Features:
Via linear hydraulic feed
Solid workpiece spindle head and wide, rigid grinding spindle support with inside grinder ensure the best possible
results under varying operating conditions grinding spindle supported on both sides in an adjustable 3segmen bushing a dwell time can be set at the end of the table travelThe sturdy spindle head swivels 30° to the left and
the right Pawl-feed in combination with a zero-stop allows repeated feed without checking the feed scale including
inside grinding feature and automatic infeed hydraulic or manual rapid feed with return infinitely variable feed.
Technical parameter:

MODEL		Unit	M1350
Distance between centers		mm	1500,2000,3000,4000
Center height		mm	270
Dia Ground(O.D)		mm	25-500
Max length ground(O.D)		mm	1500,2000,3000,4000
Max weight work piece		Kg	1000
Center taper		MT	6
Spindle speed		r/min	18-180 steplesss
Wheel spindle speed		r/min	870
Wheel head rapid travel		Mm	100
Max travel		Mm	438
Hand feed per rev			Rough:4 fine:0.5
Hand feed per gra			Rough:0.02 Fine:0.0025
Wheel size		Mm	750x75x305
Table hand feed per rev		Mm	5
Max swiveling angle of able	Clockwise		3°(1500)2°(2000,3000)1°(4000)
	Anticlockwise		6°(1500)5°(2000)3°(3000)2°(4000)
Longitudinal speed range of table		m/min	0.1-3
Center taper		Mt	6
Quill travel		mm	70
Wheel head motor power		Kw	15
Work head motor power		Kw	4
Gross weight		T	11.2(1500),13(2000)17.4(3000)20(4000)
Packing dimension		cm	510x228x210(1500) 585x228x210(2000) 785x228x210(3000) 1000x228x210(4000)

Standard accessories:
3 jaw chuck
Balance arbor
Measuring bridge plate
Wheel flange
Open type steady rest
Alloy centers
Extent arbor
Dog pole
Dog arm
Table swivel wrench
Coolant tank
Standard wheels
Wheel extractor
Work lamp
Seal rings
High speed strap
Multiple V belt
Optional accessories:
Wheel balancing stand
Magnetic separator
Close type steady rest
End wheel dresser
Radial wheel dresser
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
