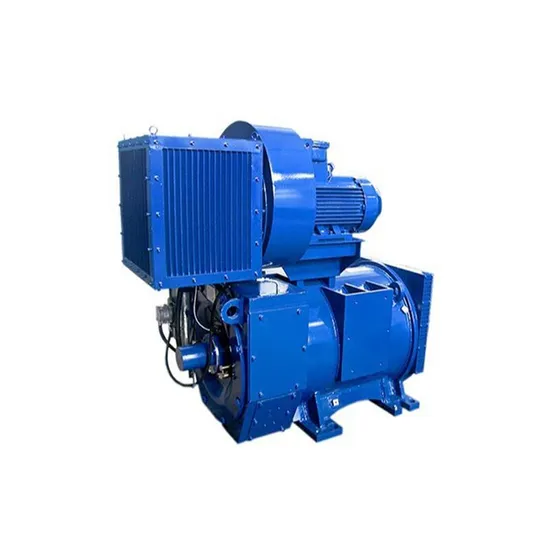

Yj13G2/G5 AC Oilfield Drilling Motor

Product Description

Product Description YZ08/Z08A DC motor is a four-pole series excited DC motor with forced ventilation, which can be used to drive drilling rig winch, mud pump, turntable, etc.
Motor features:
1.The motor is horizontal, single shaft extension, double bearing support structure.
2.The motor is equipped with differential pressure switch and maintenance switch.
3.Motor with space heater
Main technical parameters

Rated power	800kW	Rated voltage	750V
Rated current	1150A	Rated speed	970r/min
Rated torque	8033N.m	Power factor	92.70%
Insulation class	H	weight	3200kg

Product name	Product technical standards and values	Product detailed description
AC drilling motors	Rated power:1200kW Rated voltage:690V Rated current:1143A Rated speed:1000r/min Rated frequency:50.5HZ Rated torque:11460N·m Maximum speed of constant power:1500r/min Power factor:0.89 Rated efficiency:94.50% Insulation class:200 weight:3500kg	This motor is the main model of AC oilfield drilling motor exported to Russia market, and the product performance has reached the same level as foreign products.

Product name	Product technical standards and values	Product detailed description
Variable frequency speed regulating induction motor with increased safety	Rated power: 800kW Rated voltage: 690V Rated current: 826A Rated speed: 1000r/min Rated frequency: 50.5Hz Rated torque: 7640N·m Maximum speed of constant power:1750r/min Power factor: 0.85 Rated efficiency: 95% insulation class: 200 weight: 3150kg	YJ13A13 increased safety variable frequency speed regulation asynchronous motor, suitable for voltage source inverter system drive and control, can be used to drive drill winch, mud pump, turntable, etc., can also be used as a drive motor based on its variable frequency speed regulation device. 1. The stator winding adopts formed winding, 6-pole motor. 2. The rotor adopts copper guide bar squirrel cage rotor. 3. Each phase winding is equipped with two PT100 winding temperature sensors. 4. Motor with space heater. 5. The motor is suitable for Marine environment. 6. Protection grade IP44. 7. The whole motor explosion-proof, explosion-proof mark Ex d e II B T3 Gc, certificate No. CJEx15.0028

Product name	Product technical standards and values	Product detailed description
AC inverter motor

Certifications
Business partner
Performance pledge1.Service concept
(1)Fast handling of high standard operation
(2)Strict management and sincere service
(3)Adhere to the standard operation, achieve fast and efficient fault handling, and ensure the safety of product operation
(4)Adhere to strict management, improve the practice of high-quality team, become the service industry benchmark.
(5)Adhere to sincere service, innovative solutions beyond user needs, to achieve sustainable management of the company.
2.Service requirement
(1) work on time, visit customers;
(2) site inspection, user communication;
(3) effective communication, enhance friendship;
(4) Standardized records and inventory of spare parts;
(5) learn business, improve quality.

---
