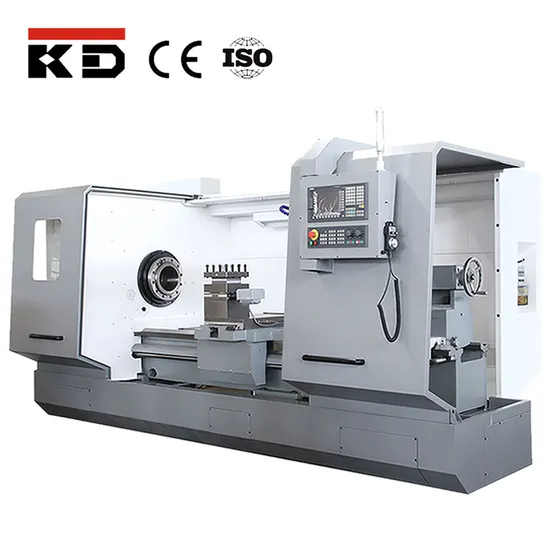

Kd High Precision CNC Pipe Thread Lathe

Kd High Precision CNC Pipe Thread Lathe

US$3,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.

CKG-200

Guide Rail

Horizontal Guide Rail

Tool Holder

Single-tool Holder CNC Lathe

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Automatic

Setting Mode

Floor-type

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Spindle Bore

210mm

Outer Dia.of Turning Pipe

50-200mm

Max Swing Over Bed

900mm

Width of Bed

560mm

Tool Post

4 Way ,6 Way Is Optional

Main Motor

18.5kw

Steps of Spindle

4 Steps

Transport Package

Wooden Pallets(Ht)

Specification

CE, ISO9001, SGS

Trademark

KD

Origin

Zhejiang China

HS Code

8458110000

Production Capacity

180 Sets/ Year

Product Description

ITEMS	CKG200
Max. swing over bed	Ø 900mm
Max. swing over carriage	Ø 560mm
Width of bed	560mm
Maximum turned length	2000/3000mm
Max. turning length	1800/2800mm
Spindle nose	Ø 50- Ø 200 mm
Spindle bore	A2-15
Cone hole diameter and taper of spindle hole	Ø 210mm
Steps of spindle speed(Manual)	4(VariableWithin Each Step)
Range of spindle speed	10~60 20~115 35~205 65~380 rpm
Rapid feed for Axis X	5m /min
Rapid feed for Axis Z	10m /min
Max. travel of Axis X	500mm
Max. travel of Axis Z	1850/2850mm
Min. input	0.001mm
Tool post stations	4 station
Tool cross section	40× 40 mm
External diameter	Ø 100mm
Taper of bore	MT. No. 6
Max. Traverse	230mm
Power of main motor	18.5 KW
Power of cooling pump	370W
Overall dimensions(L× W× H)	4560/5560x1918x1860
Net weight	4100/4600kg
