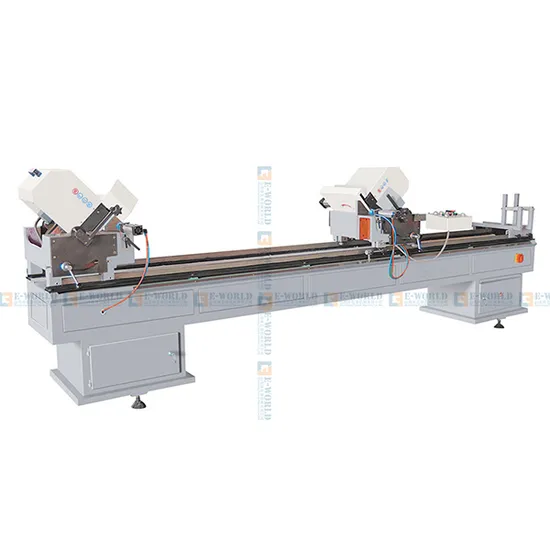

Double Head Aluminum Window Profile Digital Cutting Saw Machine

Product Description

(LJP-400-3500)PVC Double Head Cutting Saw


1.Product Description
The machine is used for processing the aluminum and PVC/UPVC/plastic/Vinyl profile at angles of -45° ~90° ~45° The two heads can work individually, simultaneously and combinatively it has the features of simple operation ,stability and high efficiency
2.Technical parameters

Model number	LJP-400-3500
Working Air pressure	0.4~0.6 Mpa
Air consumption	200L/min
Power supply	380V 50Hz
General input power	2.2 kw
Blade rotational speed	2840 r/min
Double cutting length	3500mm
Cutting thickness	125mm
Cutting width	110mm
Contour dimension	4000×900×1500mm
Machine weight(about)	600 kg

3.Packaging & Delivery

Packaging Details:	standard PLYwood packing
Delivery Detail:	5 days after get payment

4.Quick Details

Processing Type:	Other
Product Type:	PVC Profile
Place of Origin:	Shandong, China (Mainland)
Model Number:	LSJ420-3500
Voltage:	380V
Power(W):	2.2 KW
Dimension(L*W*H):	4000X900X1500mm
Weight:	600kg
Certification:	CE&ISO
application:	window door production
machine type:	cutting saw
Machine colour:	any colour or as your required
Double cutting length:	3500mm
Cutting thickness:	125mm
Cutting width:	110mm

5.Notes
1). It can process the aluminum profile, but only can cut very thin aluminum profile,so here this model usually mainly to cut the PVC/UPVC/Plastic /VInyl profile,if you want to cut both Aluminum and PVC profile, you can choose our other model SSJ06-3700
2).It has the features of easy operation and high accuracy.
3).Its cutting way is from the backward to the forward cutting, and safe cutting.
4).This cutting saw can make about 25-35 windows per day in 8 working hours. If you extend the working time, the production output will be more.
5).We can make the machine according to your true local power supply.
FAQ
1.Question:Are you manufacture?
Answer: Yes,we are professional manufacture which have more than 5 workshops.
2.Question: How about the service?
Answer:
1.Reply it within 12 hours if it from Ali-trademanager or email .
2.Deliver max within 15 days. 3.24 hours for after -sale service.
4.More than 12 years experience in this kind machine field.
5.Fluent English ,communication barrier free.
3.Question:What's the guarantee?
Answer:
1.Our guarantee is 18 months.
2.24 hour's technical support by email or calling.
3.English manual and video tutorial.
4.2 years quality guaranty for the machine (excluding the consumables).
5.We will provide the consumable parts at an agency price.
6.24 hours on line service each day, free technical support.
4. Q: Do you provide equipment operation training?
Answer: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.
5.Question:if our price is higher than another company or factories?
Answer: Please check the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
6.Question:How long is the delivery time?
Answer: For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
7.Question: What is the payment?
Answer: Any payment method you want,such as L/C,T/T,D/P,West-union and so on.

---
