US$1,000.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
FRP tower equipment
Certification
ISO9001, QS, GS, TUV, GB
Tank Marerial
Non-Metal Tank
Type
Middle Pressure Storage & Transportation Equipment
Shape
Round Scrubbing Tower
Raw Material
Vinyl Ester Resin + E-Fiberglass
Model
Absorption Tower, Scrubbing Tower, Desulfurization
Description
PVC/FRP, PVDF/FRP, PE/FRP
Specification
DN600~DN25000mm
Production Capacity
100PCS/Month
Packaging & Delivery
Package Size
300.00cm * 150.00cm * 150.00cm
Package Gross Weight
400.000kg
Product Description
Product Description

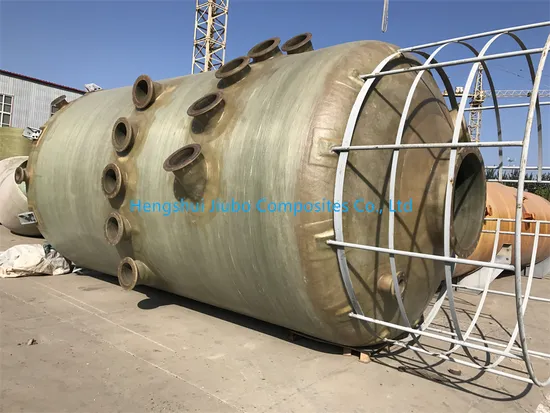

FRP tower equipment is generally made up of draught fan, packing layer, demister, circular watering pipe, circulating water channel, etc.
Currently, waste gas purification tower has been successfully used to deal with spraying waste gas, printing waste gas, chemical waste gas, electronic waste gas, medical waste gas, asphalt waste gas, mechanical exhaust, sewage waste gas, etc. And it also has a great success in meeting the national discharge standard. At the same time, it removes odour and improves the environment. It is especially suitable for the waste gas which is of low dust capacity, low concentration and great peculiar smell.
This machine aims at separating gas from the contaminant and translating into innocuous substance and then cleaning gas. The waste gas intakes to the purifying column through the air hose, after packing, the waste gas and absorption liquid are completely contacted and have a neutral reaction. After purified, the waste gas discharges into the environment after demisting and dehydration. Its motivation is draught fan.
Polypropylene (PP) is a polymer made from propylene by addition polymerization. It has thecharacteristics of high crystallinity, non-toxic, tasteless and low density. it has good chemicalresistance, heat resistance, electrical insulation and high strength mechanical propertieswidely used in chemical industry, food, medicine and other fields.
FRP is a composite material composed of glass fiber and resin, which has high strength, corrosion resistance and good plasticity. lts relative density is between 1.5 and 2.0, and its tensile strenath is close to or even exceeds that of carbon steel.
Application Application of FRP waste gas purification tower
Acid gas: sulfuric acid, HLC, nitric acid, HF etc.
Alkali gas: NAOH, KOH, NHS etc.
Organic gas: benzenes, alcohols, phenols.
Suitable for the instrumentation, electrode position, metallurgy, chemical industry, electronic machinery and other industrial acid gas purification treatment. It can also be applied to the treatment of exhaust gas containing mercury, lead and other harmful substances.
Treating Flue Gas
Flue Gas Desulfurization Process
Removing Dust
Flue Gas Desulfurization
Industrial Flue Gas Desulfurization
Handling Flue Gas
Cleaning Industrial Aicd Fog
Company Profile
Hengshui Jiubo Composites Co., Ltd. is a company specialized in production andsales of complete sets of chemical equipment, complete sets of fiberglass productproduction lines, and meantime manufacture composite material and SMC productsWe have got the Certificate ofmanagement system lS09001,1S014001,1S045001and SGS certificate. Our Production line and products have been sold to all over theworld, including the United States, Canada, Australia, Brazil, Japan, Germany, Russia.India, Malaysia, Indonesia, Egypt and other countries, winning the support and trust ofnew and old customers.
EPC chemical equipment series: Mannheim process complete sets of potassiumsulfate production equipment, sodium sulfate production equipment, complete setsof sulfuric acid equipment, complete sets of calcium chloride production equipment;
EPC complete sets of FRP product production line series: microcomputer controlledcomplete set of FRP pipes, FRP tank filament winding production line, complete set ofFRP grating production line, complete set of FRP pultruded profile production line,SF/FF oil tank production line.
Fiberglass product series: high, medium and low pressure FRP pipe, FRP tank,FRP tower, Polymer concrete cells, SF/FF double-layer oil tanks, FRP cooling tower,FRP SMC/BMC molded products, FRP pultrusion profles and other customizedfiberglass products,FRP anti-corrosion project, etc.
>>
