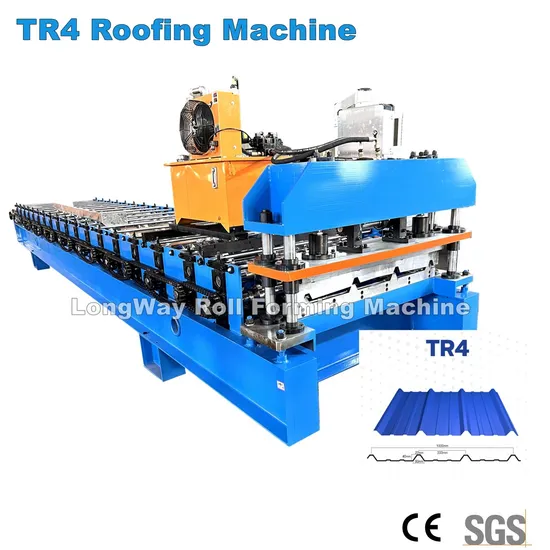

Steel Ibr Roofing Tr4 PV4 PV6 Roofing Corrugated Sheet Metal Deck Making Cold Roll Forming Machine

Product Description

Product Description
Roofing Tr4 PV4 PV6 Roofing Corrugated Sheet Metal Deck Making Cold Roll Forming Machine has follwing features:
High-Quality Production: Designed to produce durable roofing sheets with a thickness range of 0.3-0.8mm, ensuring long-lasting performance and reliability.
User-Friendly Operation: Easy to operate, requiring minimal training for users to efficiently produce high-quality roofing sheets.
Customizable Features: Offers customizable profile options and voltage settings (380v or as requested), allowing the machine to be tailored to specific customer requirements.
Comprehensive After-Sales Support: Provides reliable overseas service and technical support from a team of experienced engineers, ensuring smooth operation and minimal downtime.
2-Year Warranty Protection: Includes a 2-year warranty on the machine and core components, safeguarding your investment and offering long-term cooperation.
Profile Drawing For Reference:
Product Parameters
Working Process
Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table

Raw Material	Coil Type	PPGI,PPGL,GI
	Width	1200/1220mm
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	5.5kw (Servo Motor for option)
	Cutter power	4kw
Forming speed		15-20m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		18 mm Welded Steel Middle Support Plate
Forming shaft		75mm solid shaft with heat treatment
Material Of Rollers		High Grade 45# Forged Steel
Forming stations		20 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision
Transmission Way		Chain drive 1 inch (Double Chain for option)
Type of cutting		Hydraulic Pillar type and length-set cutting
Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		8.8m×1.5m×1.2m
Total weight (Approx)		5.6T

Detailed Photos
Applications
TR4 Metal Roofing Sheets Application:Ideal for industrial, commercial, and residential roofing, TR4 sheets provide durability, weather resistance, and easy installation. Their trapezoidal design ensures strength, aesthetic appeal, and long-lasting performance.
Company Profile
For more information about our TR4 Metal Roofing Sheets Roll Forming Machine or any other products, please send us inquiry. Our team is committed to providing prompt and professional support, and you can expect a reply within 12 hours. We're here to assist you with product specifications, customization options, pricing, and any other questions you may have.
Contact us today !

---
