Fiber Glass Direct Roving for Winding

Product Description

910HT
Direct Roving --------- Designed for Winding/ Pultrusion/ Weaving Process

Product Description

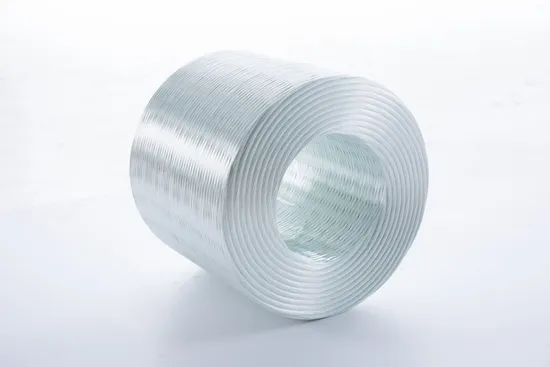

910HT is an E-glass or TCR (ECR) single-end continuous roving without mechanical twist. TCR is a boron-free, fluorine-free and environmentally friendly glass, with excellent acid resistance.
Designed for winding, pultrusion and weaving process, 910HT is a general purpose product, typically used to produce FRP products, such as pipes, tanks, molded GRP grids and pultruded products. It can also be used to manufacture woven roving.
Silane-based sizing, compatible with Unsaturated Polyester (UP), Vinyl Ester (VE), Epoxy (EP) and Polyurethane(PU) resin systems.
Characteristics Product Code
Even Tension and High Strand Integrity TCR 910HT - 2400 - 24
Superior Processing Properties and Less Fuzz TCR E-glass Chemical Resistant
Consistent Linear Density and High Filament Strength 910HT Sizing Code
Fast Wet-out and Good Ultimate State 2400 2400tex
Excellent Composite Properties 24 Filament Diameter
Technical Data

Moisture Content (%)	Loss on Ignition (%)	Linear Density (tex) (g/km)	Breaking Strength (N/Tex)
≤0.10	0.55±0.15	Tex±5%	≥0.40

Specification

Tex

275, 300 ,400, 410, 600, 735, 900, 1100, 1200,1500, 1700, 1800, 2000, 2200, 4400, 8800 ,9600

Note: Tex can be adjusted to the requirement of customers.


Composite Performance

Property	Tensile Strength (Mpa)	Tensile Modulus (Gpa)	Shear Strength (Mpa)
Test Standard	ASTM D2343	ASTM D2343	ASTM D2344
Test Value	2668	82.50	58.55

Note: Use UP resin.

Property	Tensile Strength (Mpa)	Tensile Modulus (Gpa)	Shear Strength (Mpa)
Test Standard	ASTM D2343	ASTM D2343	ASTM D2344
Test Value	2530	82.32	65.25

Note: Use EP resin with anhydride curing agent as matrix.
Packaging
Each roll (14-22kg) is wrapped in PE film, stacked on pallets or put into cartons. Each pallet stacks 36, 48 or 64 rolls. All pallets should be stacked ≤ 2 layers and Cartons ≤ 5 layers. Manner of packing can be customized.

Layer	3	4	3	4
Rolls/Layer	16		12
Rolls/Pallet	48	64	36	48
Pallet Dimensions (mm)	1120*1120*135		1280*960*130
Net Weight/Pallet (kg)	816	1088	792	1056

Storage
This product should be stored in a dry, ventilated and rainproof place, with temperature from 5ºC to 35ºC and humidity between 35% and 65%. It is recommended to be kept in intact package when not used to avoid damp.

---
