Full Servo Adult Diaper Machine Product Description

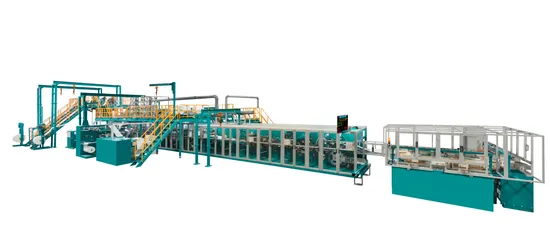

| CSG-AD350 Full Servo Adult Diaper Machine |
|
| Product Stucture |
| 1 | Normal adult diaper |
| 2 | T type adult diaper |
| 3 | Circle waist adult diaper |
| Main Technical Parameters |
| 1 | Supply,3 phase,380V,50Hz |
| 2 | Power:450KW(Excluding hot melt applicator and Compressor) |
| 3 | Production speed:180/250/350pcs/min |
| 4 | Qualification:≥97% |
| 5 | Outside dimension(m):45x 10 x 5.5 (L×W×H)( for reference) |
| Main Function and Features |
| (I)Mechanical part |
| 1 | High-density ultra-thin fluff core forming system |
| 2 | Ultra-thin core on-line making system |
| 3 | With web guiding system |
| 4 | Zero-wasted technology(option) |
| 5 | Packing machine or stacker (Option) |
| 6 | Dust collection filter system (option) |
| 7 | Rubber waist band on-line making(option) |
| (II)Electric part |
| 1 | Full servo motor drive and PLC control |
| 2 | One button for size change, quick and less waste |
| 3 | High-precision tension control system,active un-winding and auto-splicing system |
| 4 | i-MAS Intelligent equipment mangement and analysis system |
| 5 | Material auto-splicing end joint limit at 3m, and decrease material wastage |
| 6 | Material automatic inspect,broken and lost alarm system |
| 7 | Vision inspection system (option) |
