Wanlong Super Sharp Diamond Segment for Quarry Stones

Product Description

Block Cutting Segment And Blade For Granite PRODUCT FEATURES:1 The blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long lifespan
2 Good cutting result:smooth cutting,flat surface and even size
3 Stable cutting,narrow cutting gap,stone waste reduction 4 M-Shape segment is easy for diamond opening WANLONG Diamond Tools Co., Ltd looks forward to establishing a mutually beneficial relationship with all of you.

Diameter (mm)	Width (mm)	Height (mm)	Length (mm)	Number of segment (pcs)	Inner hole of core (mm)	Thickness of core (mm)
200	3.2	10,12,15	40	14	50,60	1.8
250	3.2	10,12,15	40	17	50,60	2.2
300	3.2	10,12,15	40	21	50,60	2.2
350	3.2	10,12,15,20	40	24	50,60	2.2
400	3.6	10,12,15,20	40	28	50,60	2.6
450	4	10,12,15,20	40	32	50,60	3
500	4	10,12,15,20	40	36	50,60	3
550	4.6	10,12,15,20	40	40	50,60	3.6
600	4.6	10,12,15,20	40	42	50,60	3.6
700	5	10,12,15,20	40	52	50,60	4
750	5.5	10,12,15,20	40	56	50,60	4.5
800	5.5	10,12,15,20	40	46	50,60	4.5
850	5.5	10,12,15,20	40	50	50,60	4.5

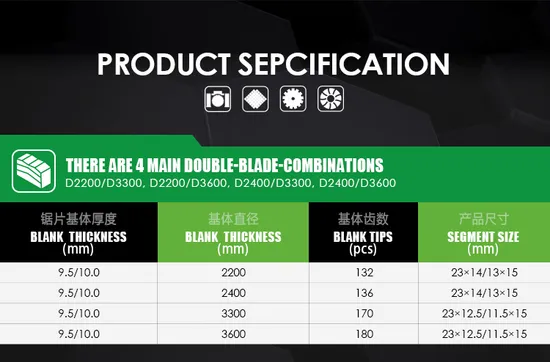

Diameter(mm) Steel core(mm) Head size(mm) No. Shape Application

900	5.0	24×7.0/6.2×13(15,20)	64	Z3T/Z3T-M (conical)	Granite
1000	5.0	24×7.0/6.2×13(15,20)	70	Z3T/Z3T-M (conical)	Granite
1200	5.5	24×7.4/6.6×13(15,20)	80	Z3TZ3T-M (conical)	Granite
1400	6.0	24×8.0/7.2×13(15,20)	92	Z3T/Z3T-M (conical)	Granite
1400	6.5	24×8.4/7.6×13(15,20)	92	Z3T/Z3T-M (conical)	Granite
1600	7.2	24×9.2/8.4×13(15,20)	108	Z3T/Z3T-M (conical)	Granite
1800	7.5	24×10/9.2×13(15,20)	120	Z3T/Z3T-M (conical)	Granite
2000	8.0	24×11/10×15(20)	128	Z3T/Z3T-M (conical)	Granite
2200	9.0	24×11/10×15(20)	132	Z3T/Z3T-M (conical)	Granite
2500	9.0	24×12/11×20(30)	140	Z3T/Z3T-M (conical)	Granite
2700	9.0	24×12/11×20(30)	140	Z3T/Z3T-M (conical)	Granite
3000	9.3	24×13/12×20(30)	160	Z3T/Z3T-M (conical)	Granite
3500	9.5	24×13.5/12.5×20(30)	180	Z3T/Z3T-M (conical)	Granite

Other specifications are available upon request.
For different blade and stones, customized segment size and numbers will be suggested and Wanlong can supply different specifications and diameters as per customer's requirement.

---
